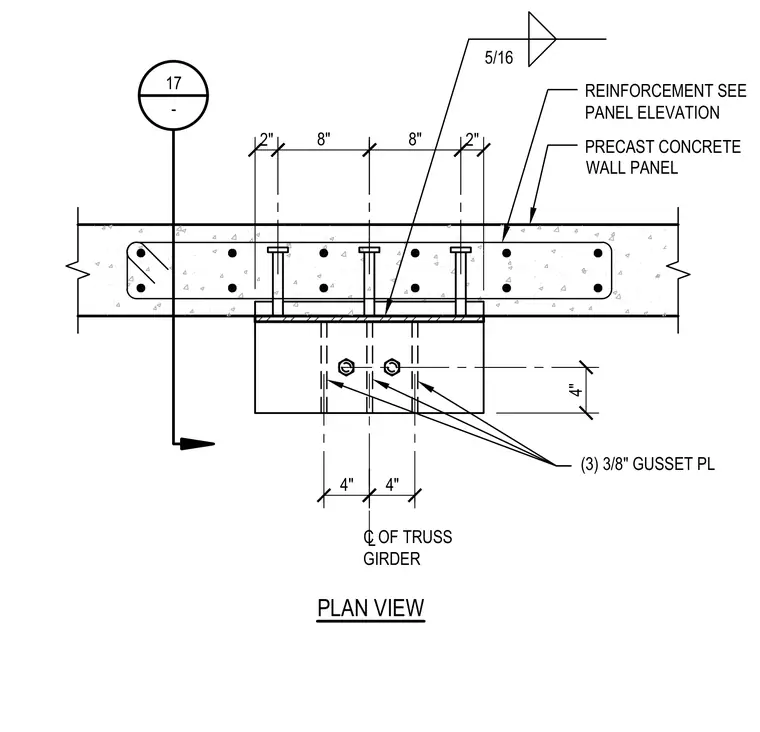

A structural plan view shows a truss girder framing into a precast concrete wall panel. Three three-eighth-inch gusset plates connect the truss girder to an embedded plate within the precast concrete wall panel. The assembly features a five-sixteenth-inch fillet weld and reinforcing steel detailed per the panel elevation. Dimensions space the gusset plates at four-inch and eight-inch intervals centered on the truss girder.
2" 2" PLAN VIEW (3) 3/8" GUSSET PL 4" C OF TRUSS GIRDER L 4" 8" 8" 17 - 5/16 PRECAST CONCRETE WALL PANEL REINFORCEMENT SEE PANEL ELEVATION 4"
