Structural · S-HV2ZG

Carried Column Base Plate and Stiffener Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

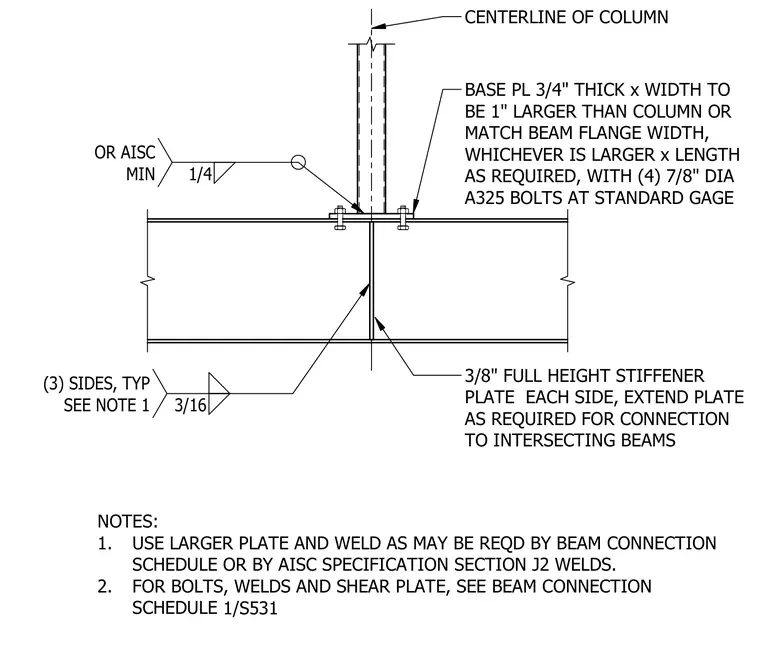

A structural steel column lands on a supporting beam flange via a three-quarter-inch base plate fastened with four seven-eighth-inch diameter A325 bolts at standard gauge. Three-eighth-inch full-height stiffener plates are welded to each side of the web and extended as required for connection to intersecting beams. A one-quarter-inch fillet weld secures the base plate to the column, and three-sixteenth-inch fillet welds secure the stiffener plates on three sides typically. All connections must comply with the beam connection schedule or AISC specification section J2.
