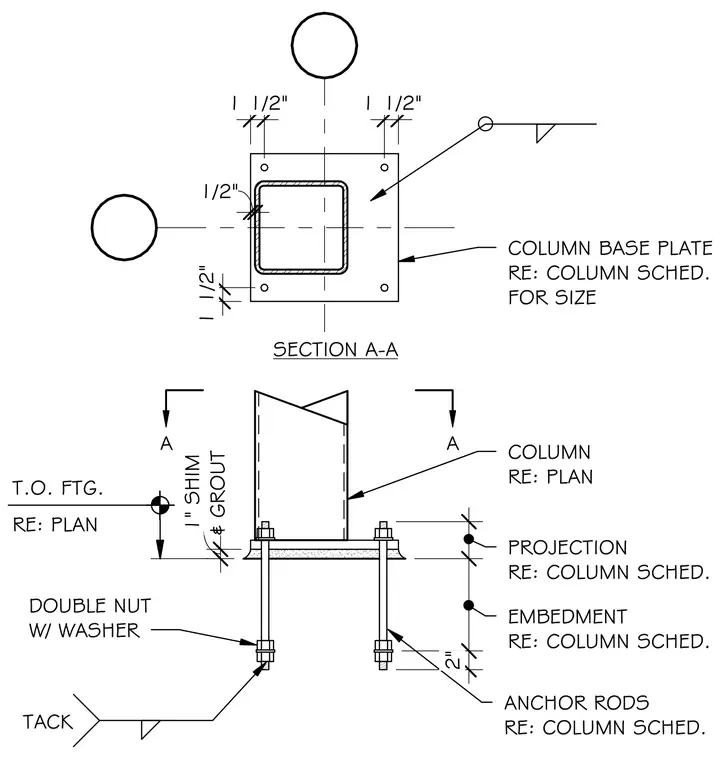

A structural steel column bears on a base plate secured by four anchor rods detailed per the column schedule. The base plate rests on a one-inch layer of grout above the top of the footing, with shims providing the elevation adjustment. Each anchor rod features double nuts with washers for secure fastening. The column profile and base plate dimensions are coordinated per plan and schedule.
COLUMN BASE PLATE RE: COLUMN SCHED. FOR SIZE SECTION A-A A A & GROUT 1" SHIM T.O. FTG. RE: PLAN PROJECTION RE: COLUMN SCHED. EMBEDMENT RE: COLUMN SCHED. COLUMN RE: PLAN ANCHOR RODS RE: COLUMN SCHED. DOUBLE NUT W/ WASHER TACK 2" 1 1/2" 1 1/2" 1 1/2" 1/2"
