Structural · S-HTTQZ

Typical Beam Discontinuity Cantilever Connection

Materials

Steel

Elements

Beams Decks Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

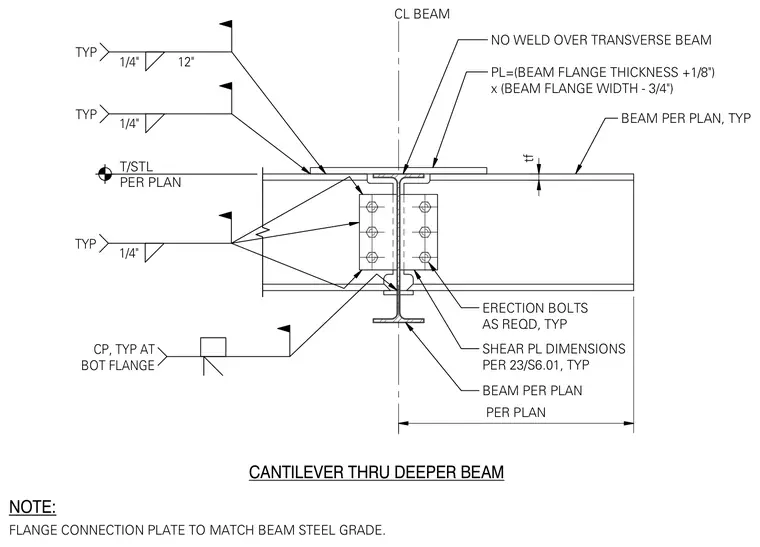

A structural steel beam frames through a deeper transverse beam, with a flange connection plate welded across the top and left unwelded directly over the transverse beam centerline. The flange connection plate dimensions are sized as the beam flange thickness plus one-eighth inch by the beam flange width minus three-quarters inch, matching the beam steel grade. A shear plate with typical erection bolts connects the beam web, accompanied by typical one-quarter inch fillet welds and a cope detail at the bottom flange.
