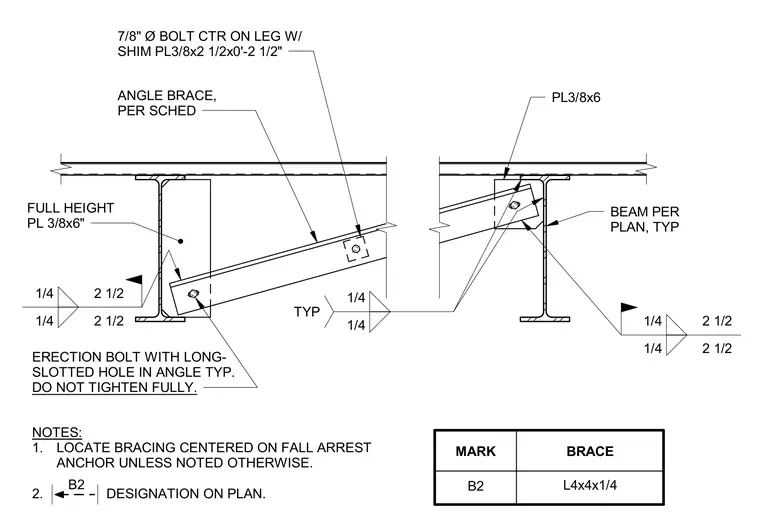

An angle brace connects between structural steel beams sized per plan, utilizing a full-height plate measuring 3/8-inch by 6 inches welded with typical quarter-inch fillet welds. The L4x4x1/4 angle brace features an erection bolt with a long-slotted hole left untightened, accompanied by a 3/8-inch by 2-1/2-inch shim plate and a 7/8-inch diameter bolt centered on the angle leg. Bracing is located centered on the fall arrest anchor unless noted otherwise on the structural plan.
MARK BRACE B2 L4x4x1/4 ANGLE BRACE, PER SCHED FULL HEIGHT PL 3/8x6" BEAM PER PLAN, TYP PL3/8x6 1/4 2 1/2 1/4 2 1/2 1/4 1/4 TYP 1/4 2 1/2 1/4 2 1/2 NOTES: 1. LOCATE BRACING CENTERED ON FALL ARREST ANCHOR UNLESS NOTED OTHERWISE. 2. DESIGNATION ON PLAN. ERECTION BOLT WITH LONG- SLOTTED HOLE IN ANGLE TYP. DO NOT TIGHTEN FULLY. 7/8" Ø BOLT CTR ON LEG W/ SHIM PL3/8x2 1/2x0'-2 1/2" B2
