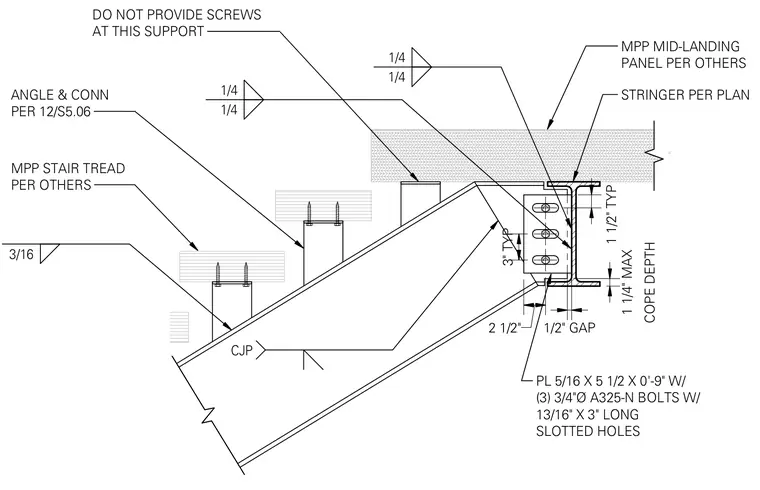

A structural steel stair stringer terminates at a mid-landing panel, connected via a 5/16 inch by 5-1/2 inch by 9-inch plate secured with three 3/4-inch-diameter ASTM A325-N bolts in 13/16-inch by 3-inch long slotted holes. A 1/2-inch gap is maintained at the connection, and a CJP weld joins the stringer components. Stair treads and mid-landing panels are provided per others, with specific supports left free of screws to allow movement.
MPP MID-LANDING PANEL PER OTHERS MPP STAIR TREAD PER OTHERS PL 5/16 X 5 1/2 X 0'-9" W/ (3) 3/4"Ø A325-N BOLTS W/ 13/16" X 3" LONG SLOTTED HOLES 3/16 STRINGER PER PLAN 1/4 1/4 ANGLE & CONN PER 12/S5.06 1 1/2" TYP 3" TYP COPE DEPTH 1 1/4" MAX 1/4 1/4 1/2" GAP CJP DO NOT PROVIDE SCREWS AT THIS SUPPORT 2 1/2"
