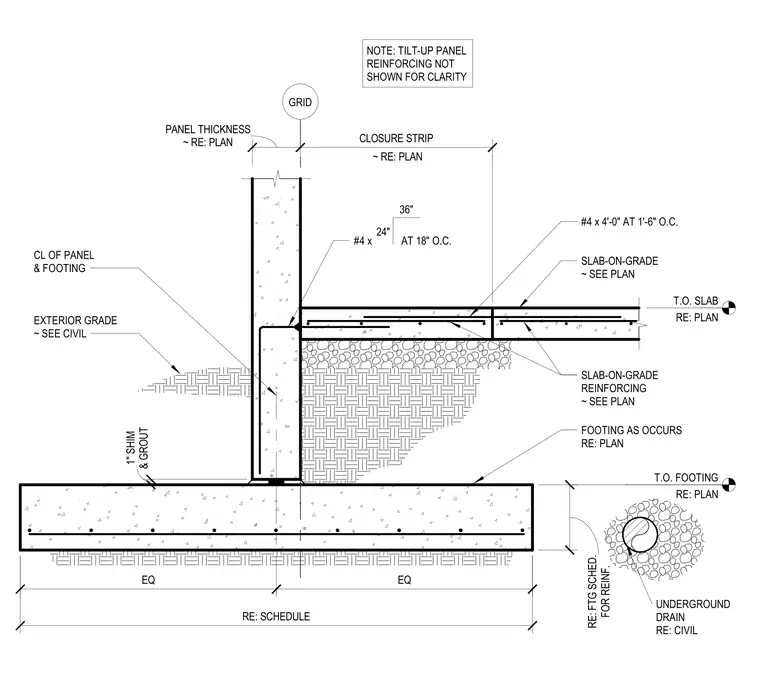

This assembly features a tilt-up concrete panel supported by a continuous concrete footing, with a one-inch shim and grout space provided at the base. The panel aligns with the footing centerline, while a slab-on-grade is positioned adjacent to the panel, separated by a closure strip. Reinforcement includes number four bars at eighteen inches on center within the slab-on-grade and number four bars at four feet long spaced at one foot six inches on center at the panel-to-slab interface. An underground drain is located adjacent to the footing, with footing dimensions and reinforcement referenced to the structural schedule and civil drawings.
Text on the drawing
GRID T.O. FOOTING RE: PLAN SLAB-ON-GRADE ~ SEE PLAN T.O. SLAB RE: PLAN RE: SCHEDULE EXTERIOR GRADE ~ SEE CIVIL FOR REINF. RE: FTG SCHED. & GROUT 1" SHIM CL OF PANEL & FOOTING #4 x 4'-0" AT 1'-6" O.C. ~ RE: PLAN PANEL THICKNESS ~ RE: PLAN CLOSURE STRIP 36" 24" EQ EQ NOTE: TILT-UP PANEL REINFORCING NOT SHOWN FOR CLARITY SLAB-ON-GRADE REINFORCING ~ SEE PLAN FOOTING AS OCCURS RE: PLAN UNDERGROUND DRAIN RE: CIVIL #4 x AT 18" O.C.
