Mass plywood columns connect vertically using a proprietary Simpson connector set flush with the top of the column. A tie plate secures the assembly with a minimum of twelve or sixteen SDS25300 fasteners per member depending on the specific plate model. Four SDCF10x200 fasteners secure each member. Shims provide typical infill at all gaps between the columns and surrounding panels.

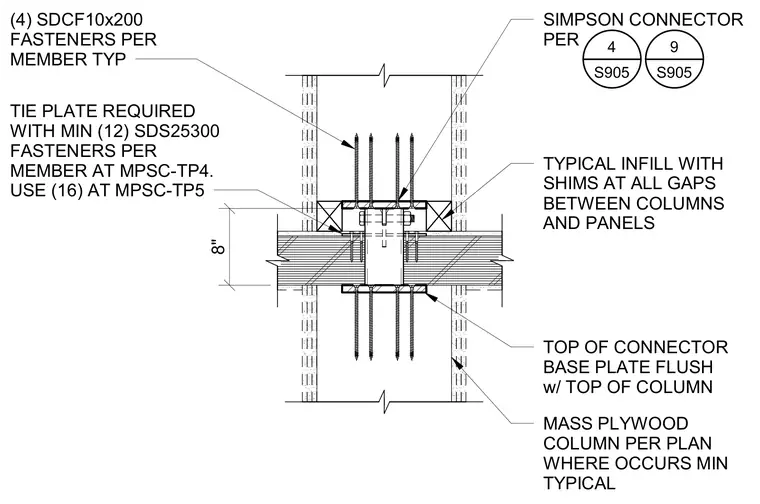

SIMPSON CONNECTOR PER 4 S905 9 S905 8" (4) SDCF10x200 FASTENERS PER MEMBER TYP MASS PLYWOOD COLUMN PER PLAN WHERE OCCURS MIN TYPICAL TYPICAL INFILL WITH SHIMS AT ALL GAPS BETWEEN COLUMNS AND PANELS TIE PLATE REQUIRED WITH MIN (12) SDS25300 FASTENERS PER MEMBER AT MPSC-TP4. USE (16) AT MPSC-TP5 TOP OF CONNECTOR BASE PLATE FLUSH w/ TOP OF COLUMN
