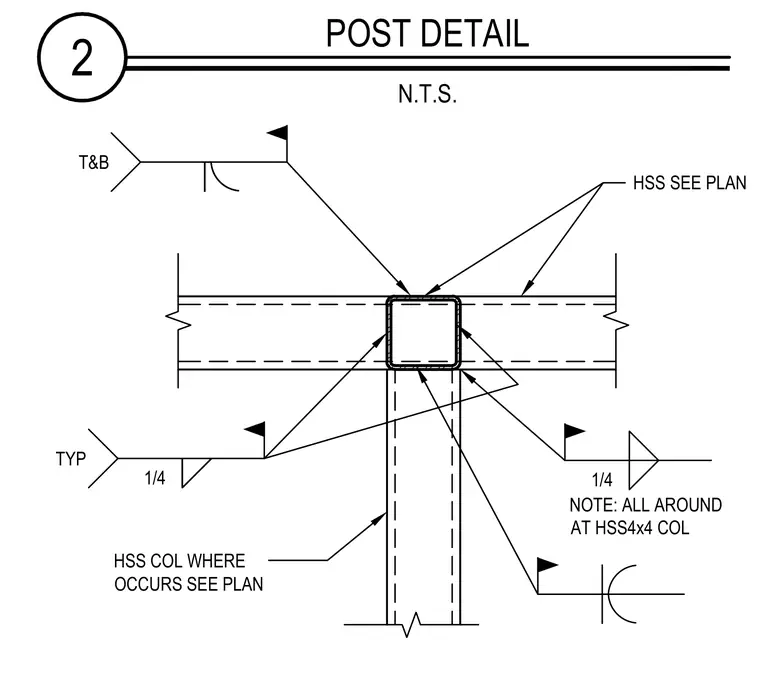

A hollow structural section column intersects framing members with connections sized per plan at the top and bottom. Fillet welds of one-quarter inch are specified typically, with all-around welding noted at four-by-four hollow structural section columns where they occur.
2 POST DETAIL N.T.S. HSS SEE PLAN T&B 1/4 TYP HSS COL WHERE OCCURS SEE PLAN 1/4 NOTE: ALL AROUND AT HSS4x4 COL
