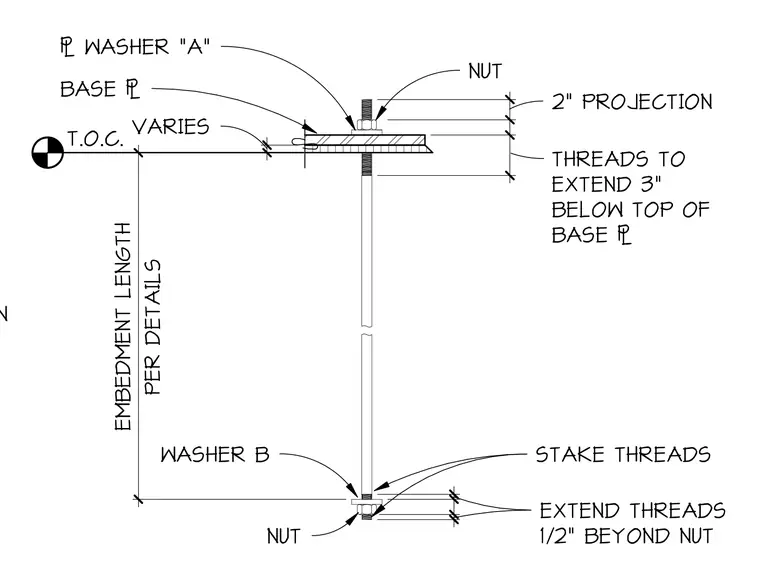

An anchor rod extends through a base plate with a 2-inch projection above the top of concrete and features washer A and a securing nut. The threaded rod extends 3 inches below the top of the base plate with a variable distance to the embedment length per details. The bottom of the rod includes washer B and a lower nut with staked threads extending 1/2 inch beyond the nut.
1/16" LARGER THAN 2" 4" T.O.C. 3/4 " VARIES BASE WASHER "A" PER DETAILS EMBEDMENT LENGTH WASHER B NUT 1 /2" 1 /2" EXTEND THREADS 1/2" BEYOND NUT STAKE THREADS THREADS TO EXTEND 3" BELOW TOP OF BASE 2" PROJECTION NUT
