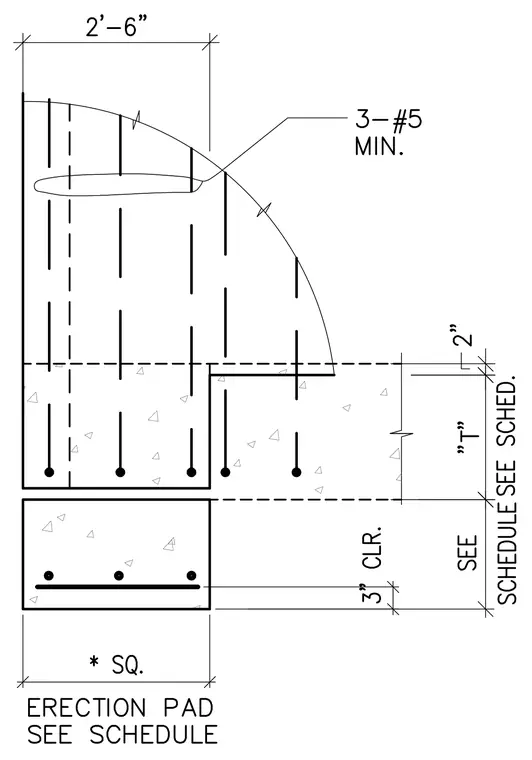

A reinforced concrete pier connects to an adjacent erection pad detailed per the structural schedule. The pier features a minimum of three number 5 reinforcing bars with a 2-foot-6-inch dimension, while the pad includes a 3-inch clearance and dimensions referenced in the schedule. Thickness 'T' is determined by the schedule, with a 2-inch vertical dimension noted at the interface.
