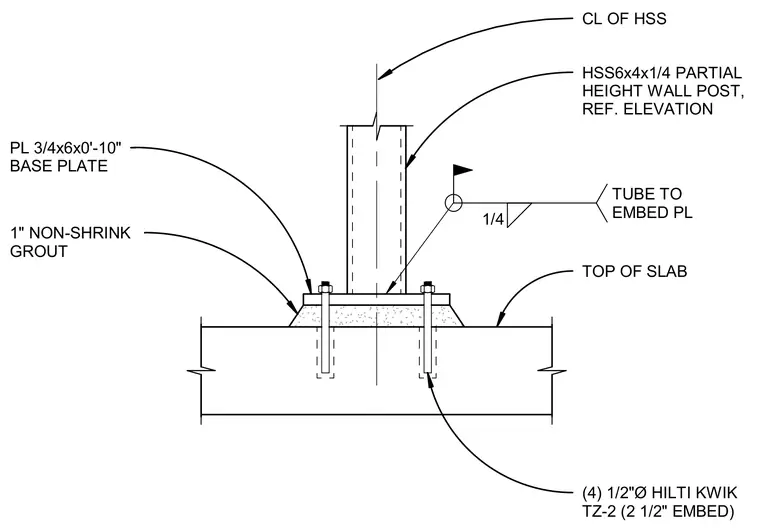

An HSS6x4x1/4 partial height wall post is welded to a 3/4 inch by 6 inch by 0 feet 10 inch steel base plate with a 1/4 inch fillet weld. The assembly bears on a 1 inch layer of non-shrink grout above the top of the concrete slab. Four 1/2 inch diameter Hilti Kwik TZ-2 anchor bolts with a 2 1/2 inch embedment secure the base plate to the concrete.
HSS6x4x1/4 PARTIAL HEIGHT WALL POST, REF. ELEVATION (4) 1/2"Ø HILTI KWIK TZ-2 (2 1/2" EMBED) PL 3/4x6x0'-10" BASE PLATE TOP OF SLAB 1" NON-SHRINK GROUT CL OF HSS 1/4 TUBE TO EMBED PL
