Typical Hanging Mechanical Unit Support Detail

Materials

Concrete Reinforced Concrete Steel Glass / Glazing Metal (misc.)

Elements

Columns Beams Walls Partitions Doors Roofs Floors / Slabs Decks Arches Bracing Connections / Plates Reinforcing

Connections

HSS Connection Bracing Connection Welded Connection Deck Attachment

About this detail

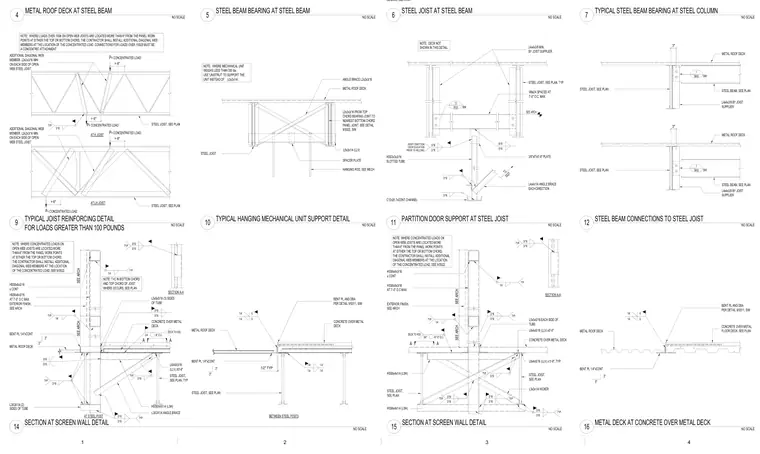

Suspension framing for a hanging mechanical unit supported from a steel joist and metal roof deck. An angle brace measuring L2x2x3/16 spans from the top chord bearing joint to the nearest bottom chord panel joint, matching detail 9/S522 similarly. A structural angle section L5x3x1/4 (long leg vertical) serves as the primary support, positioned beneath a spacer plate and connected to the hanging rod sized per mechanical plans. A drawing note specifies that where the mechanical unit weighs less than 300 pounds, a Unistrut section should be used to support the unit instead of the L5x3x1/4 angle.

181360_S522-04 4 METAL ROOF DECK AT STEEL BEAM NO SCALE 2240-21 5 STEEL BEAM BEARING AT STEEL BEAM NO SCALE 181360_S522-06 6 STEEL JOIST AT STEEL BEAM GLAZING, SEE ARCH NO SCALE 138368-03 7 TYPICAL STEEL BEAM BEARING AT STEEL COLUMN NO SCALE 133176-00 9 TYPICAL JOIST REINFORCING DETAIL FOR LOADS GREATER THAN 100 POUNDS P = CONCENTRATED LOAD P = CONCENTRATED LOAD ADDITIONAL DIAGONAL WEB MEMBER. L2x2x3/16 MIN STEEL JOIST, SEE PLAN TYP 3/16 NOTE: WHERE LOADS OVER 100# ON OPEN WEB JOISTS ARE LOCATED MORE THAN 6" FROM THE PANEL WORK POINTS AT EITHER THE TOP OR BOTTOM CHORD, THE CONTRACTOR SHALL INSTALL ADDITIONAL DIAGONAL WEB MEMBERS AT THE LOCATION OF THE CONCENTRATED LOAD. CONNECTIONS FOR LOADS OVER 100LB MUST BE ON EACH SIDE OF OPEN WEB STEEL JOIST A CONCENTRIC ATTACHMENT STEEL JOIST, SEE PLAN AT LH JOIST P = CONCENTRATED LOAD AT K JOIST ADDITIONAL DIAGONAL WEB MEMBER. L2x2x3/16 MIN ON EACH SIDE OF OPEN WEB STEEL JOIST P = CONCENTRATED LOAD > 6" > 6" > 6" > 6" NO SCALE 133176-01 10 TYPICAL HANGING MECHANICAL UNIT SUPPORT DETAIL L5x3x1/4 (LLV) L2x2x3/16 FROM TOP CHORD BEARING JOINT TO NEAREST BOTTOM CHORD PANEL JOINT. SEE DETAIL 9/S522, SIM ANGLE BRACE L2x2x3/16 METAL ROOF DECK SPACER PLATE HANGING ROD, SEE MECH STEEL JOIST NOTE: WHERE MECHANICAL UNIT WEIGHS LESS THAN 300 lbs. USE 'UNISTRUT' TO SUPPORT THE UNIT INSTEAD OF L5x3x1/4. NO SCALE 181360_S522-11 11 PARTITION DOOR SUPPORT AT STEEL JOIST 12 S522 SIM 5/16 5/16 3/16 3/16 DOOR ELEVATION PRIOR TO WELDING VERIFY PARTITION 3/16 3/16 L4x4x3/8 MIN, 3/8"x5"x0'-8" PLATE L4x4x1/4 ANGLE BRACE EACH DIRECTION HSS3x3x3/16 SLOTTED TUBE C12x20.7xCONT CHANNEL SEE ARCH BY JOIST SUPPLIER NOTE: DECK NOT SHOWN IN THIS DETAIL. STEEL JOIST, SEE PLAN, TYP 12 S521 W8x24 SPACED AT 7'-0" O.C. MAX NO SCALE 133304-21 12 STEEL BEAM CONNECTIONS TO STEEL JOIST STEEL BEAM, SEE PLAN METAL ROOF DECK STEEL JOIST, SEE PLAN L4x4x3/8 BY JOIST SUPPLIER STEEL BEAM, SEE PLAN METAL ROOF DECK STEEL JOIST, SEE PLAN L4x4x3/8 BY JOIST SUPPLIER 1 S602 SIM 1 S602 SIM 3" 3" NO SCALE 181360_S522-14 14 SECTION AT SCREEN WALL DETAIL HSS6x6x3/16 x CONT HSS6x6x3/16 AT 7'-0" O.C MAX 1/4 1/4 EXTERIOR FINISH, SEE ARCH TYP TYP 3/4 DECK TO HSS 6" O.C. 3/16 3/16 3/16 HSS6X4X1/4 (LSH) STEEL JOIST, L3X3X1/4 ANGLE BRACE TYP 3/16 3/16 TYP 3/16 L6X4X5/16 (LLV) X0'-6" TYP 3/16 L3X3X1/4 (2) SIDES OF TUBE SEE PLAN, TYP 3/16 TYP 3/16 3/16 SECTION A-A NOTE: WHERE CONCENTRATED LOADS ON OPEN WEB JOISTS ARE LOCATED MORE THAN 6" FROM THE PANEL WORK POINTS AT EITHER THE TOP OR BOTTOM CHORD, THE CONTRACTOR SHALL INSTALL ADDITIONAL DIAGONAL WEB MEMBERS AT THE LOCATION OF THE CONCENTRATED LOAD, SEE 9/S522. NOTE: T=C IN BOTTOM CHORD AND TOP CHORD OF JOIST WHERE OCCURS, SEE PLAN L5x5x5/16 (3) SIDES OF TUBE A A AT STEEL POST METAL ROOF DECK BENT PL 1/4"xCONT 3" 3" CONCRETE OVER METAL DECK BETWEEN STEEL POSTS METAL ROOF DECK CONCRETE OVER METAL DECK BENT PL AND DBA PER DETAIL 9/S511, SIM 1/2" TYP BENT PL 1/4"xCONT 3" 3" STEEL JOIST, SEE PLAN 1/4 1-6 1/4 1-6 1/4 6 1/4 6 SEE ARCH SEE ARCH NO SCALE 181360_S522-15 15 SECTION AT SCREEN WALL DETAIL HSS6x6x3/16 x CONT HSS6x6x3/16 AT 7'-0" O.C MAX 1/4 1/4 EXTERIOR FINISH, SEE ARCH TYP TYP A A CONCRETE OVER METAL DECK L6x4x5/16 (LLV) x0'-8" L5x5x5/16 EACH SIDE OF TUBE L3x3x1/4 KICKER STEEL JOIST, SEE PLAN TYP 3/16 3/16 SECTION A-A HSS6x4x1/4 (LSH) TYP 3/16 3/16 3/16 TYP 3/16 3/4" DECK TO HSS AT 6" O.C. NOTE: WHERE CONCENTRATED LOADS ON OPEN WEB JOISTS ARE LOCATED MORE THAN 6" FROM THE PANEL WORK POINTS AT EITHER THE TOP OR BOTTOM CHORD, THE CONTRACTOR SHALL INSTALL ADDITIONAL DIAGONAL WEB MEMBERS AT THE LOCATION OF THE CONCENTRATED LOAD, SEE 9/S522. L6x4x5/16 (LLV) x 0'-8", TYP HSS6x4x1/4 (LSH) 3/16 TYP 3/16 TYP 3/16 3/16 3/16 TYP STEEL JOIST, SEE PLAN SEE ARCH SEE ARCH NO SCALE 181360_S522-16 16 METAL DECK AT CONCRETE OVER METAL DECK METAL ROOF DECK BENT PL AND DBA PER DETAIL 9/S511, SIM CONCRETE OVER METAL FLOOR DECK, SEE PLAN BENT PL 1/4"xCONT 3" 5" 1/4 6 1/4 6 NO SCALE 1 2 3 4
