Cold-formed steel stud wall framing at corners and intersections utilizing 600S162-54 studs spaced at sixteen inches on center typical. A 600S162-54 notched backing member is provided as required for attachment, secured to each stud with four number ten screws. The assembly provides structural continuity and backing support for interior or exterior wall finishes at intersecting partitions.

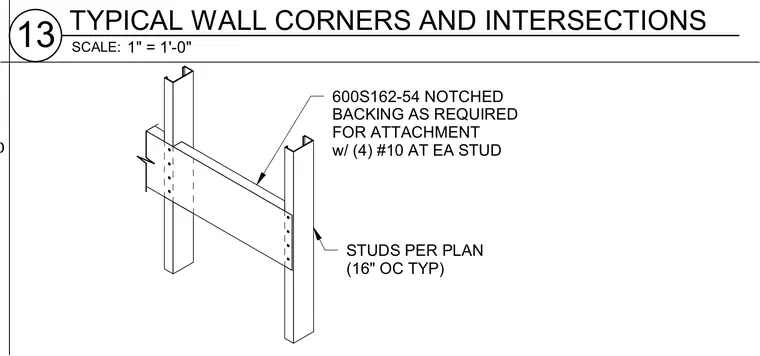

STUDS PER PLAN (16" OC TYP) 600S162-54 NOTCHED BACKING AS REQUIRED FOR ATTACHMENT w/ (4) #10 AT EA STUD METAL STUD w/ 2" SLOTTED SCALE: 1" = 1'-0" 13 TYPICAL WALL CORNERS AND INTERSECTIONS
