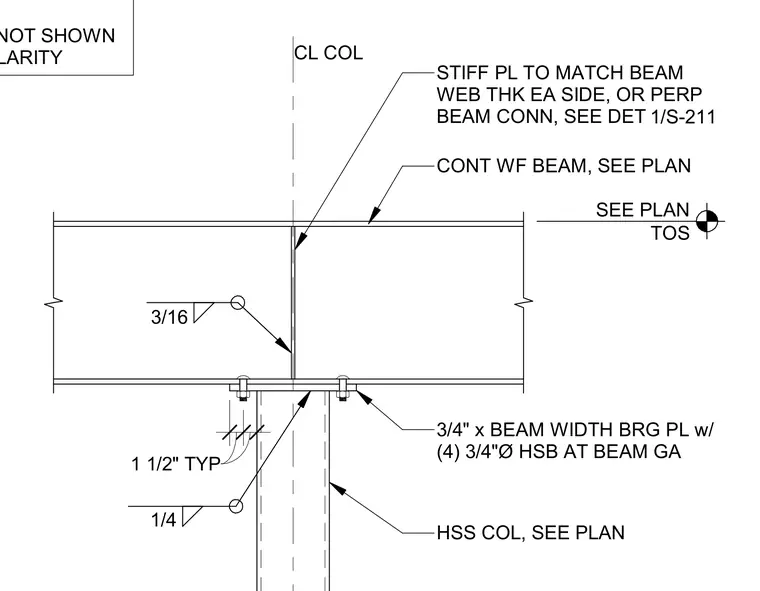

A continuous wide flange beam rests on a three-quarter-inch by beam-width bearing plate bolted to the top of a hollow structural section column with four three-quarter-inch diameter high-strength bolts sized at beam gauge. Stiffener plates matching the beam web thickness are welded to each side of the column centerline with three-sixteenth-inch fillet welds. A quarter-inch fillet weld secures the bearing plate to the hollow structural section column. The deck is omitted for clarity.
SEE PLAN TOS DECK NOT SHOWN FOR CLARITY CONT WF BEAM, SEE PLAN 3/4" x BEAM WIDTH BRG PL w/ (4) 3/4"Ø HSB AT BEAM GA HSS COL, SEE PLAN 3/16 CL COL STIFF PL TO MATCH BEAM WEB THK EA SIDE, OR PERP BEAM CONN, SEE DET ___ . 1/4 1 1/2" TYP 1 1/2" TYP 1/S-211
