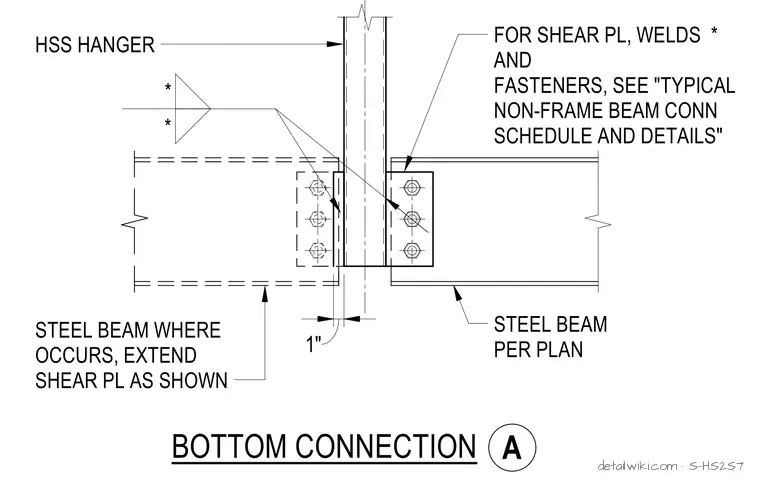

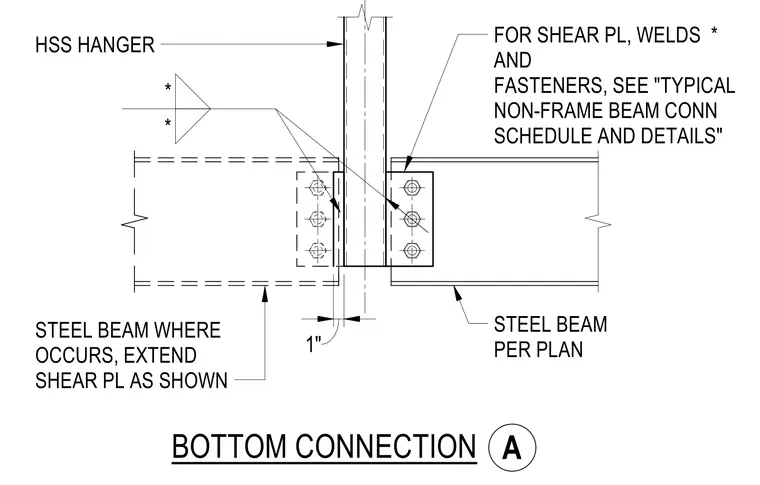

The assembly details a vertical hollow structural section hanger connecting to intersecting steel beams on either side using shear plates and bolted connections. Notes direct the user to the typical non-frame beam connection schedule for specific shear plate, weld, and fastener requirements. A 1-inch clearance dimension and specific extension notes for the steel beam and shear plate are indicated.
Text on the drawing
FOR SHEAR PL, WELDS * AND FASTENERS, SEE "TYPICAL NON-FRAME BEAM CONN SCHEDULE AND DETAILS" STEEL BEAM WHERE OCCURS, EXTEND SHEAR PL AS SHOWN STEEL BEAM PER PLAN HSS HANGER BOTTOM CONNECTION * * 1" A
