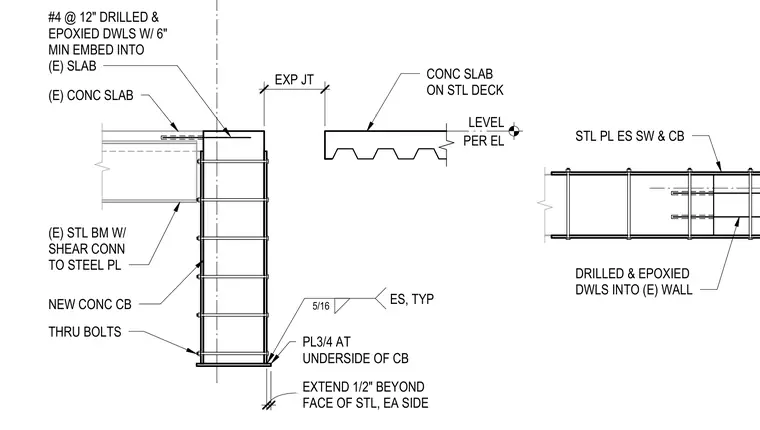

An expansion joint condition occurs between a new concrete curb and an existing concrete slab on metal deck. The new concrete curb ties back into the existing slab using number four dowels drilled and epoxied with a six inch minimum embedment. A steel beam with a shear connection bears onto a three-quarter inch steel plate at the underside of the curb, secured by through bolts. Additional steel plates and drilled and epoxied dowels tie the assembly to the existing wall. Five-sixteenth inch fillet welds are specified typically on each side.
PER EL LEVEL EXP JT NEW CONC CB (E) CONC SLAB CONC SLAB ON STL DECK #4 @ 12" DRILLED & EPOXIED DWLS W/ 6" MIN EMBED INTO (E) SLAB THRU BOLTS (E) STL BM W/ SHEAR CONN TO STEEL PL PL3/4 AT UNDERSIDE OF CB 1 1/4" EXTEND 1/2" BEYOND FACE OF STL, EA SIDE ES, TYP 5/16 STL PL ES SW & CB DRILLED & EPOXIED DWLS INTO (E) WALL
