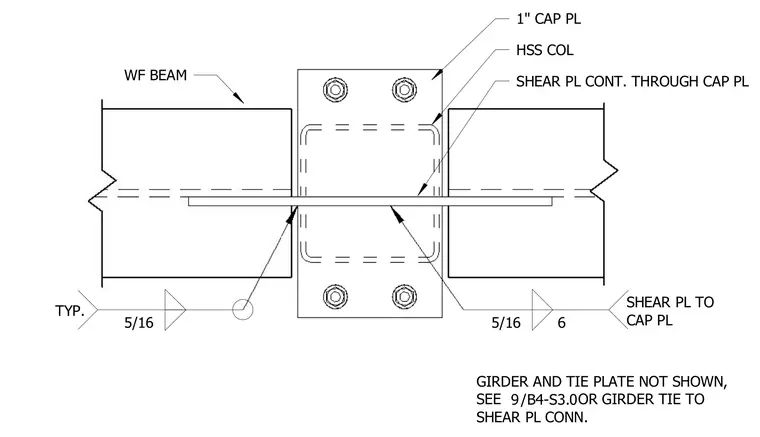

A continuous shear plate passes through a one-inch cap plate welded to the top of a hollow structural section column. Wide flange beams frame into the column and connect to the continuous shear plate with five-sixteenth-inch fillet welds. The cap plate is secured to the HSS column with four bolts. A note indicates that girders and tie plates are omitted from this view and refers to another detail for the girder tie to shear plate connection.
5/16 6 SHEAR PL TO CAP PL WF BEAM TYP. 5/16 HSS COL 1" CAP PL SHEAR PL CONT. THROUGH CAP PL GIRDER AND TIE PLATE NOT SHOWN, SEE FOR GIRDER TIE TO SHEAR PL CONN. / 9 B4-S3.0
