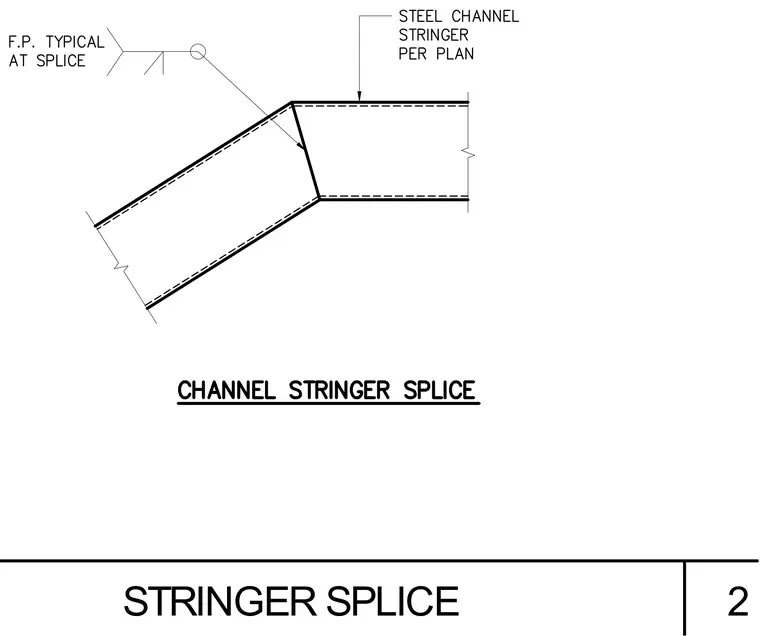

Two steel channel stringers sized per plan meet at an angled butt splice. A full penetration weld is specified typically at the splice connection.
