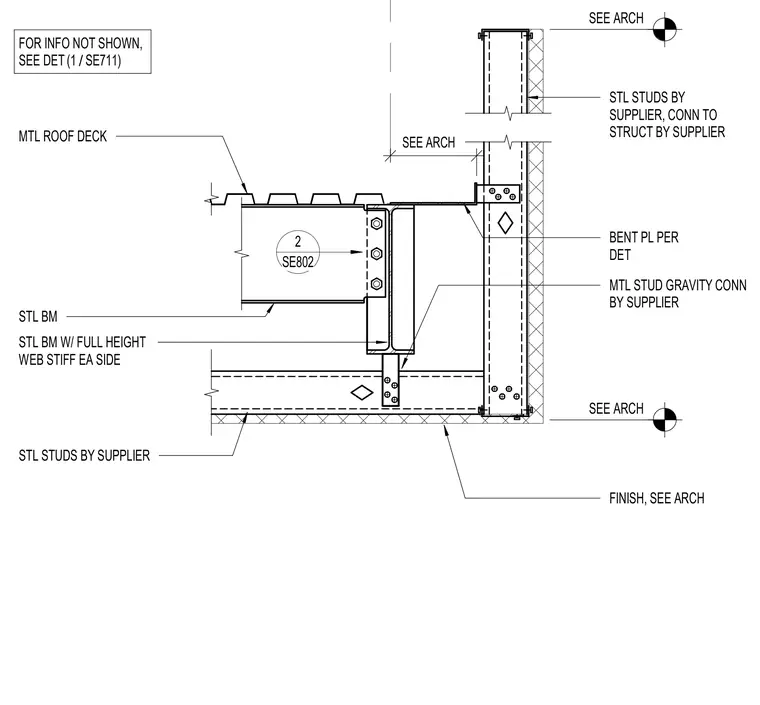

A metal roof deck bears on a structural steel beam reinforced with full-height web stiffeners on each side. A bent plate connects the steel beam to the exterior architectural metal studs provided by the supplier. Additional metal stud gravity connections are detailed with supplier-furnished components. Exterior finishes and unshown information are coordinated with architectural drawings.
SEE ARCH STL STUDS BY SUPPLIER FINISH, SEE ARCH STL STUDS BY SUPPLIER, CONN TO STRUCT BY SUPPLIER MTL ROOF DECK STL BM W/ FULL HEIGHT WEB STIFF EA SIDE BENT PL PER DET SEE ARCH SEE ARCH FOR INFO NOT SHOWN, SEE DET / (1 SE711) MTL STUD GRAVITY CONN BY SUPPLIER STL BM 2 SE802
