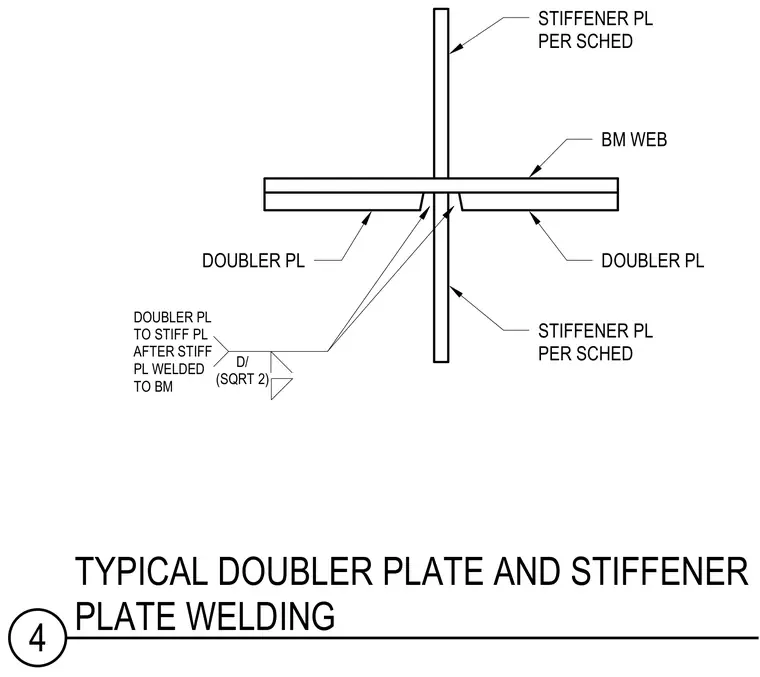

Doubler plates are welded to the beam web alongside stiffener plates sized per the schedule. The doubler plate is welded to the stiffener plate after the stiffener plate has been welded to the beam. Weld sizing follows the indicated formula with typical fillet weld configurations.
STIFFENER PL PER SCHED BM WEB DOUBLER PL STIFFENER PL PER SCHED DOUBLER PL DOUBLER PL TO STIFF PL AFTER STIFF PL WELDED TO BM D/ (SQRT 2) 4 TYPICAL DOUBLER PLATE AND STIFFENER PLATE WELDING
