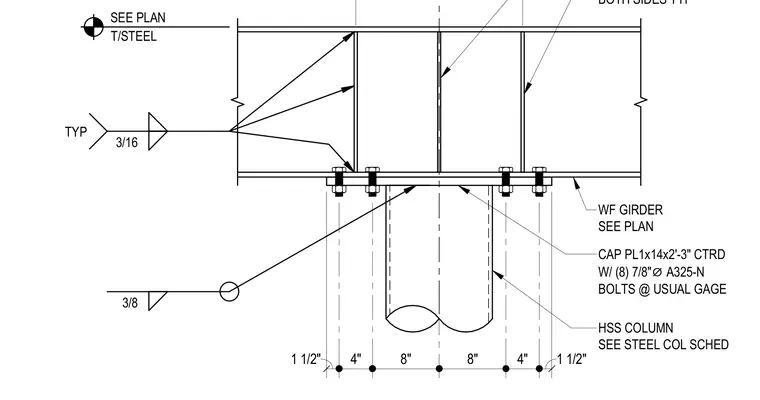

A wide-flange steel girder frames over a hollow structural section column, bearing on a 1-inch thick by 14-inch wide by 2-foot 3-inch long cap plate centered on the column top with a 3/8-inch weld. The wide-flange girder connects to the cap plate using eight 7/8-inch diameter A325-N bolts arranged at standard gauge spacings of 1 1/2 inches, 4 inches, and 8 inches. Stiffener plates welded with typical 3/16-inch fillets align on both sides of the girder web directly above the column supports.
T/STEEL SEE PLAN 1 1/2" 4" 8" 8" 4" 1 1/2" 3/16 TYP 3/8 HSS COLUMN SEE STEEL COL SCHED BOTH SIDES TYP WF GIRDER SEE PLAN CAP PL1x14x2'-3" CTRD W/ (8) 7/8" ⌀ A325-N BOLTS @ USUAL GAGE
