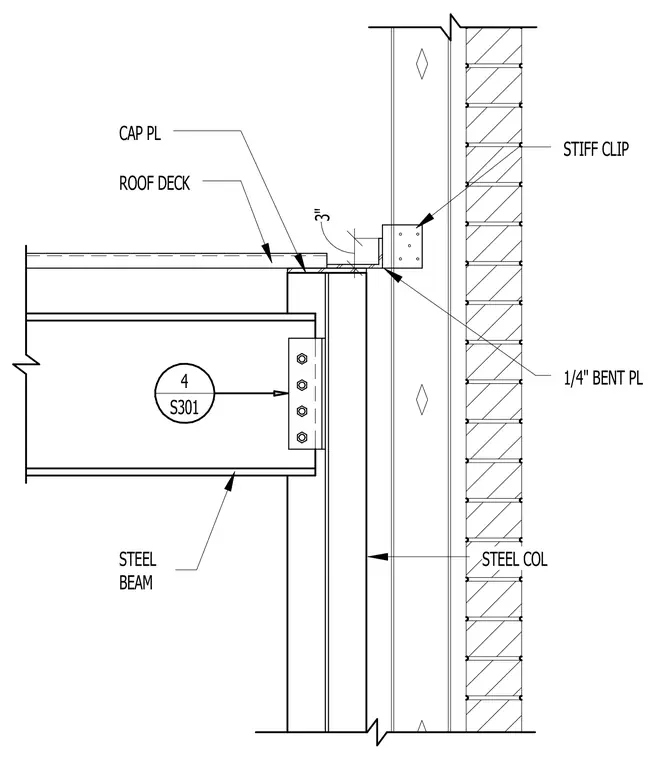

A steel beam connects to a structural steel column using a bolted shear tab or clip angle with four bolts. A one-quarter-inch bent plate and cap plate tie the roof deck framing into the column support. A stiffener clip secures the upper assembly adjacent to the exterior wall construction.
