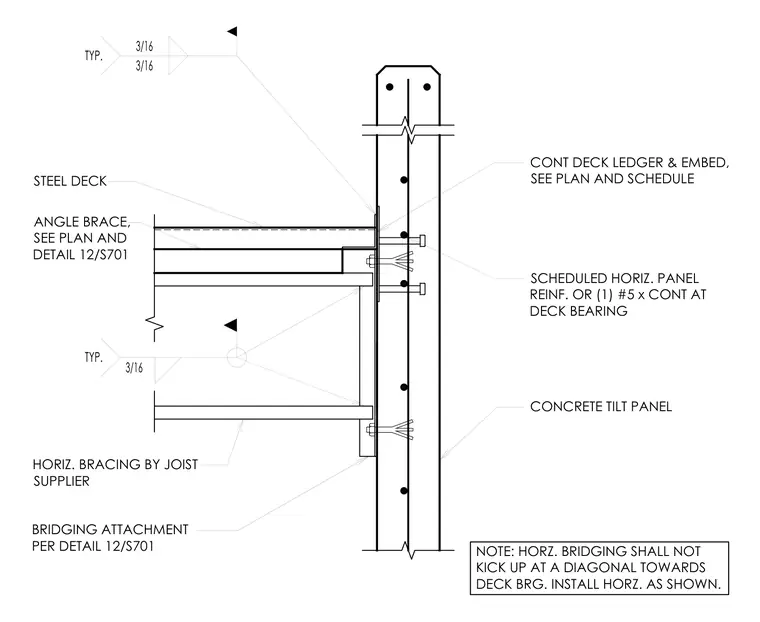

A steel deck bearing connection against a concrete tilt-up wall panel. A continuous deck ledger and embed plate is anchored into the tilt panel with scheduled horizontal panel reinforcement or one continuous number 5 bar at the deck bearing. Steel deck bears against the ledger angle with a three-sixteenths inch fillet weld. Horizontal bracing is supplied by the joist supplier and installed horizontally as specified, with bridging attachments detailed per plan and drawing twelve over S seven hundred one. Horizontal bridging must not kick up at a diagonal toward the deck bearing.
3/16 BRIDGING ATTACHMENT PER DETAIL 12/S701 HORIZ. BRACING BY JOIST SUPPLIER NOTE: HORZ. BRIDGING SHALL NOT KICK UP AT A DIAGONAL TOWARDS DECK BRG. INSTALL HORZ. AS SHOWN. 3/16 3/16 TYP. STEEL DECK TYP. SCHEDULED HORIZ. PANEL REINF. OR (1) #5 x CONT AT DECK BEARING CONCRETE TILT PANEL ANGLE BRACE, SEE PLAN AND DETAIL 12/S701 CONT DECK LEDGER & EMBED, SEE PLAN AND SCHEDULE ^A ; - \ A\ J* A A .1 A <3 £=j
