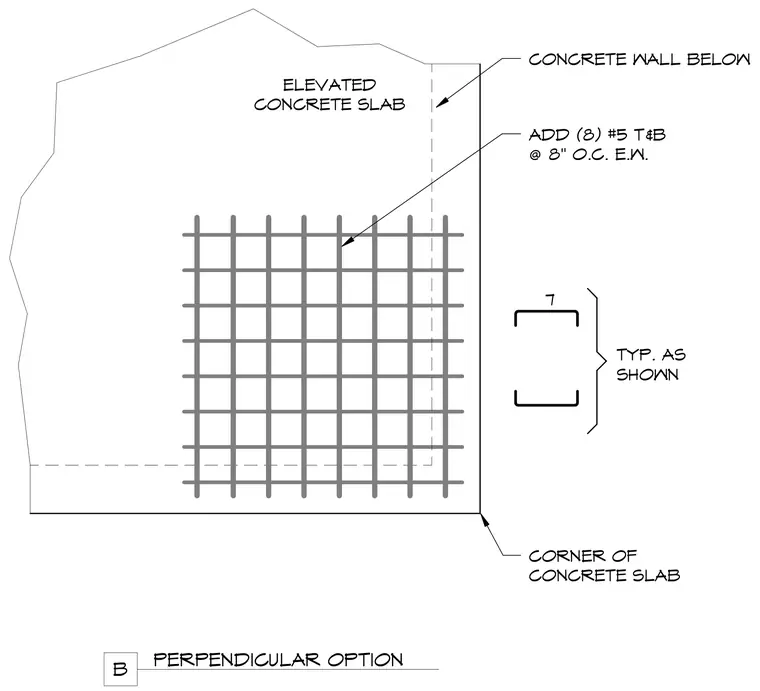

An elevated concrete slab is supported by a concrete wall below at the perimeter corner. Additional reinforcement consists of eight number five bars placed at the top and bottom at eight inches on center each way. This perpendicular option applies typically as shown for slab corner conditions.
PERPENDICULAR OPTION B TYP. AS SHOWN 7 CORNER OF CONCRETE SLAB ADD (8) #5 T&B @ 8" O.C. E.W. ELEVATED CONCRETE SLAB CONCRETE WALL BELOW
