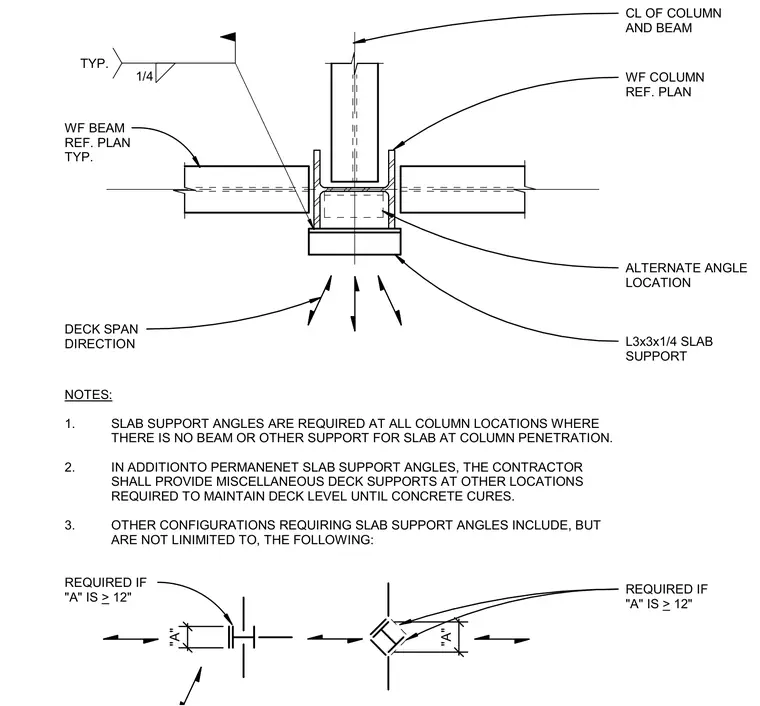

An L3x3x1/4 structural steel angle provides perimeter slab support around a wide flange column penetration where no beam framing exists. The support angle is welded to the wide flange beam and column assembly with a one-quarter-inch typical fillet weld. Alternate angle locations accommodate varying column geometries and deck span directions. Additional miscellaneous deck supports are provided by the contractor to maintain deck level until concrete cures.
CL OF COLUMN AND BEAM WF COLUMN REF. PLAN L3x3x1/4 SLAB SUPPORT WF BEAM REF. PLAN TYP. DECK SPAN DIRECTION 1/4 TYP. ALTERNATE ANGLE LOCATION NOTES: 1. SLAB SUPPORT ANGLES ARE REQUIRED AT ALL COLUMN LOCATIONS WHERE THERE IS NO BEAM OR OTHER SUPPORT FOR SLAB AT COLUMN PENETRATION. 2. IN ADDITIONTO PERMANENET SLAB SUPPORT ANGLES, THE CONTRACTOR SHALL PROVIDE MISCELLANEOUS DECK SUPPORTS AT OTHER LOCATIONS REQUIRED TO MAINTAIN DECK LEVEL UNTIL CONCRETE CURES. 3. OTHER CONFIGURATIONS REQUIRING SLAB SUPPORT ANGLES INCLUDE, BUT ARE NOT LINIMITED TO, THE FOLLOWING: "A" REQUIRED IF "A" IS > 12" REQUIRED IF "A" IS > 12" "A"
