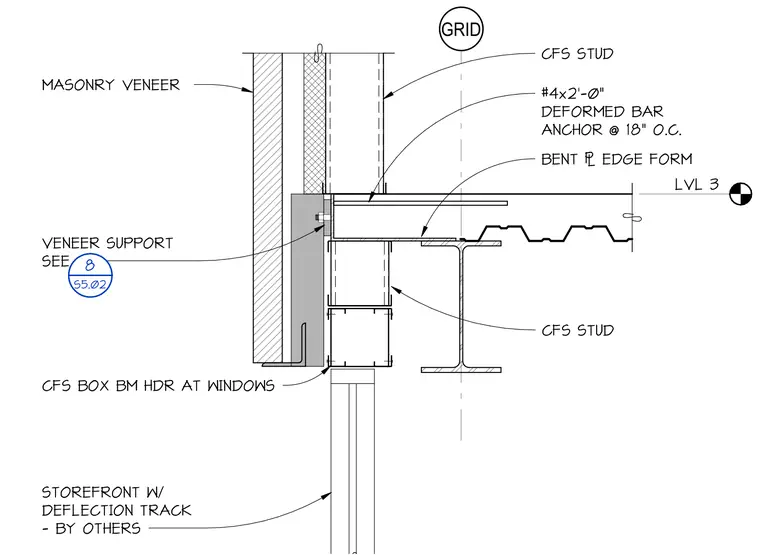

Level 3 floor edge assembly featuring a bent plate edge form anchored with number four deformed bar anchors at eighteen inches on center. Cold-formed steel studs align with the grid above and bear on a cold-formed steel box beam header located at window heads. Masonry veneer is carried on a veneer support angle referenced to sheet S5.02. A storefront system with a deflection track provided by others sits below the window header.
LVL 3 BENT EDGE FORM #4x2'-0" DEFORMED BAR ANCHOR @ 18" O.C. VENEER SUPPORT SEE MASONRY VENEER CFS STUD GRID STOREFRONT W/ DEFLECTION TRACK - BY OTHERS CFS BOX BM HDR AT WINDOWS CFS STUD 8 S5.02
