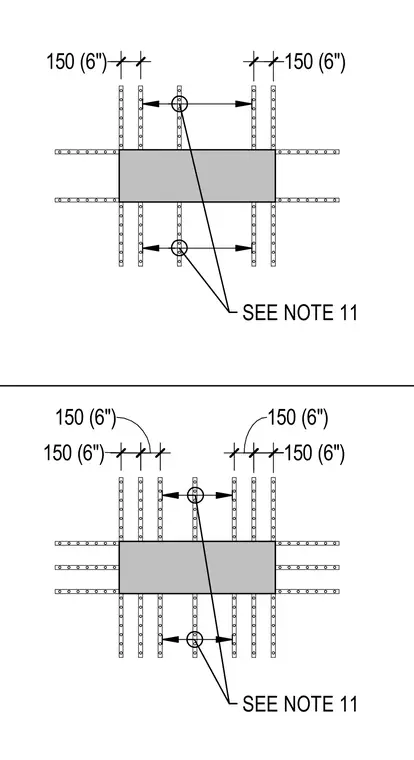

Reinforcing steel dowels are arranged around a concrete element with six-inch spacing dimensions of 150 millimeters. Specific placement and lap requirements are referenced to note 11. The orthogonal bar configuration details dowel spacing on all four sides.
