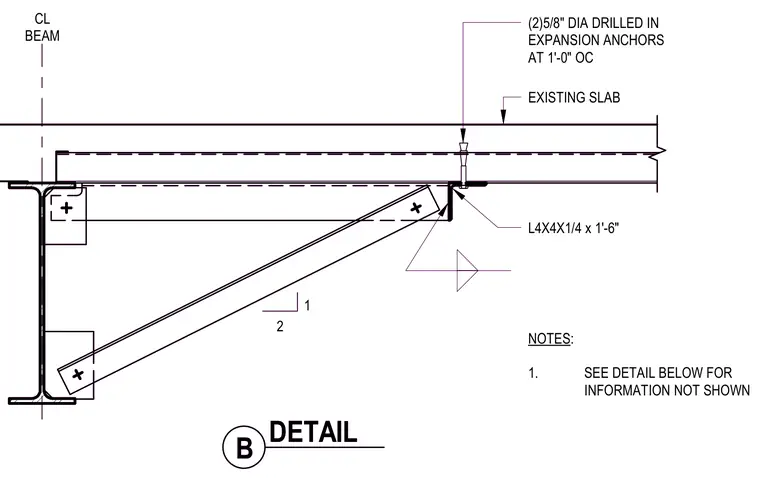

An L4x4x1/4 angle measuring one foot six inches long connects to an existing concrete slab using two five-eighths-inch diameter drilled-in expansion anchors spaced at one foot on center. The angle assembly ties back to a structural steel beam with an inclined brace member welded or bolted at both ends. The connection aligns with the centerline of the beam as noted.
EXISTING SLAB L4X4X1/4 x 1'-6" (2)5/8" DIA DRILLED IN EXPANSION ANCHORS AT 1'-0" OC CL BEAM NOTES: 1. SEE DETAIL BELOW FOR INFORMATION NOT SHOWN 1 2 B DETAIL EXISTING SLAB L4X4X1/4 x 1'-6" (2)5/8" DIA DRILLED IN EXPANSION ANCHORS AT 1'-0" OC CL BEAM NOTES: 1. SEE DETAIL BELOW FOR INFORMATION NOT SHOWN 1 2 B DETAIL
