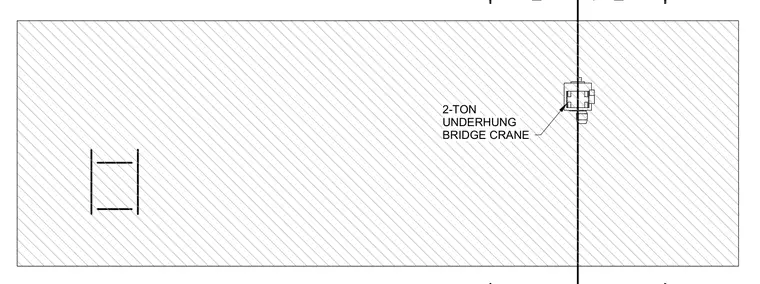

A two-ton underhung bridge crane is suspended from the structural framing system. The crane assembly is positioned with designated clearance tolerances as outlined in the engineering specifications.
