Structural · S-HPXVN

Typical Stair Framing Detail at Floor Beam

Materials

Elements

Beams Stairs Floors / Slabs Decks Arches Connections / Plates

About this detail

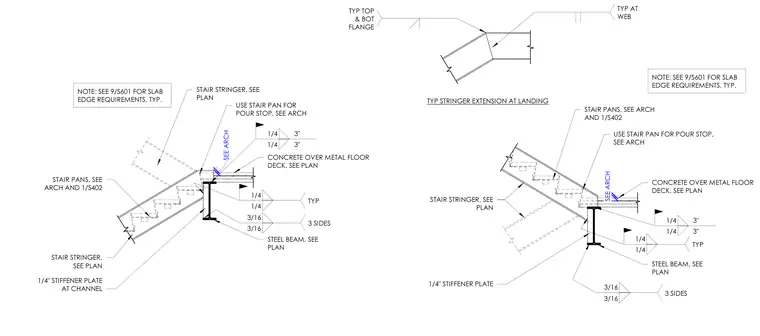

A stair stringer connects to a supporting steel floor beam at a slab edge. The assembly features a stair stringer aligning with a concrete fill over a metal floor deck, utilizing stair pans configured to act as pour stops as coordinated with architectural drawings. A one-quarter-inch stiffener plate is welded to the channel with fillet welds sized at one-quarter inch typical on three sides and three inches long. The steel beam web and flanges receive welded connections indicated by three-sixteenth-inch and one-quarter-inch fillet welds. Slab edge requirements are referenced to coordinate with separate detailing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
