Structural · S-HPXMT

Typical Stair Framing Detail

Materials

Elements

Beams Stairs Floors / Slabs Decks Arches

About this detail

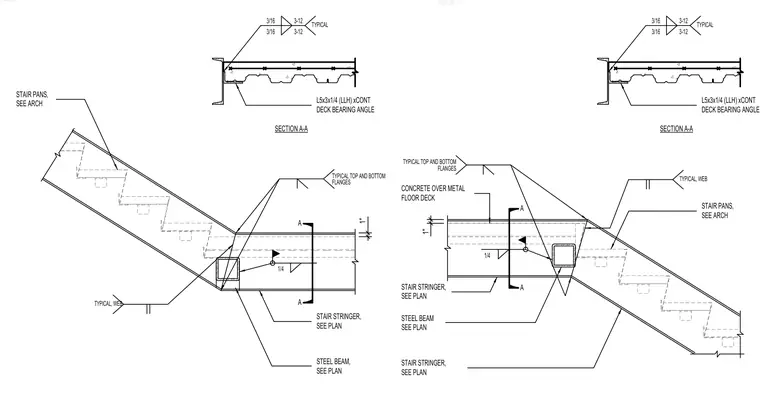

Structural steel stair framing connections include stair stringers supported by steel beams sized per plan, along with continuous deck bearing angles designated as L5x3x1/4. Concrete-filled metal floor decks bear on the structural angles with three-sixteenth-inch fillet welds spaced at twelve inches typically. Stair pans are coordinated per architectural drawings. Weld sizes of one-quarter inch are indicated at the stringer and beam intersections along typical top and bottom flanges and webs.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
