Cold-formed steel stud header configurations designated H2 and H3 feature tracks and studs sized to match the wall bottom track unless otherwise noted. Fastening is specified using number 10 screws spaced at twelve inches on center typical unless noted otherwise.

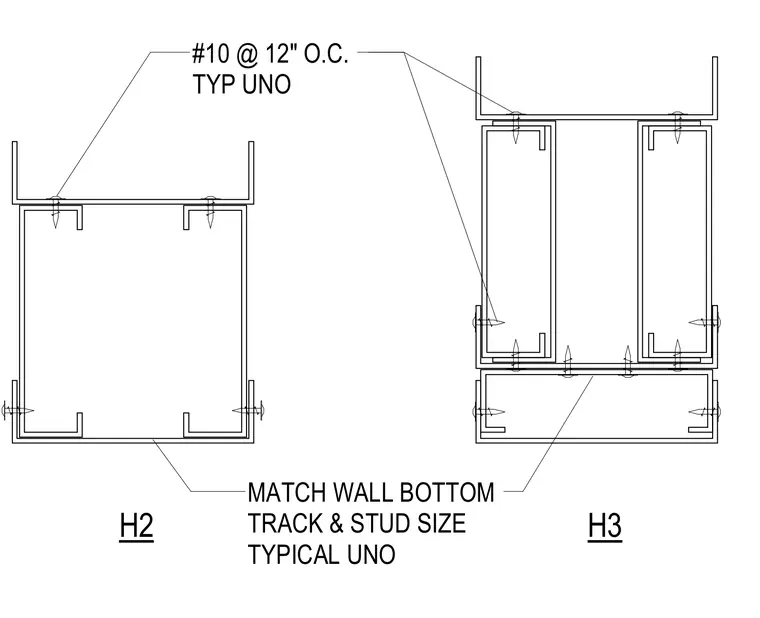

H2 H3 #10 @ 12" O.C. TYP UNO MATCH WALL BOTTOM TRACK & STUD SIZE TYPICAL UNO
