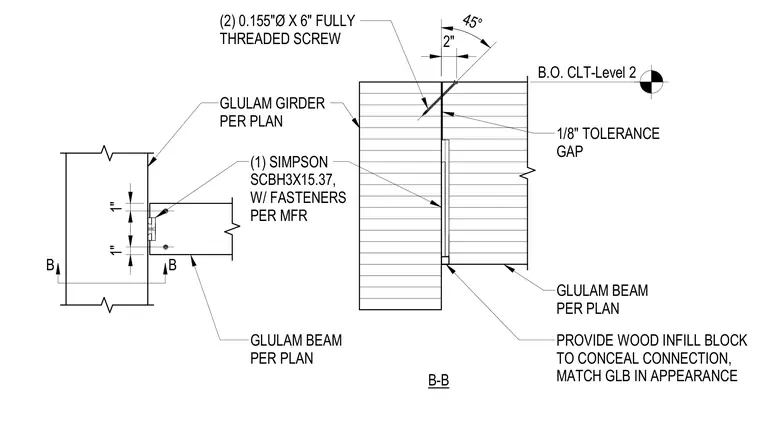

A glulam beam connects to a glulam girder using one Simpson SCBH3X15.37 concealed hanger with fasteners per the manufacturer, complemented by two 0.155-inch diameter by 6-inch fully threaded screws installed at a 45-degree angle. A 1/8-inch tolerance gap separates the members, and a wood infill block is provided to conceal the connection while matching the glulam in appearance.
B B GLULAM GIRDER PER PLAN GLULAM BEAM PER PLAN (1) SIMPSON SCBH3X15.37, W/ FASTENERS PER MFR PROVIDE WOOD INFILL BLOCK TO CONCEAL CONNECTION, MATCH GLB IN APPEARANCE GLULAM BEAM PER PLAN B-B 2" 45° 1" 1" (2) 0.155"Ø X 6" FULLY THREADED SCREW B.O. CLT-Level 2 1/8" TOLERANCE GAP
