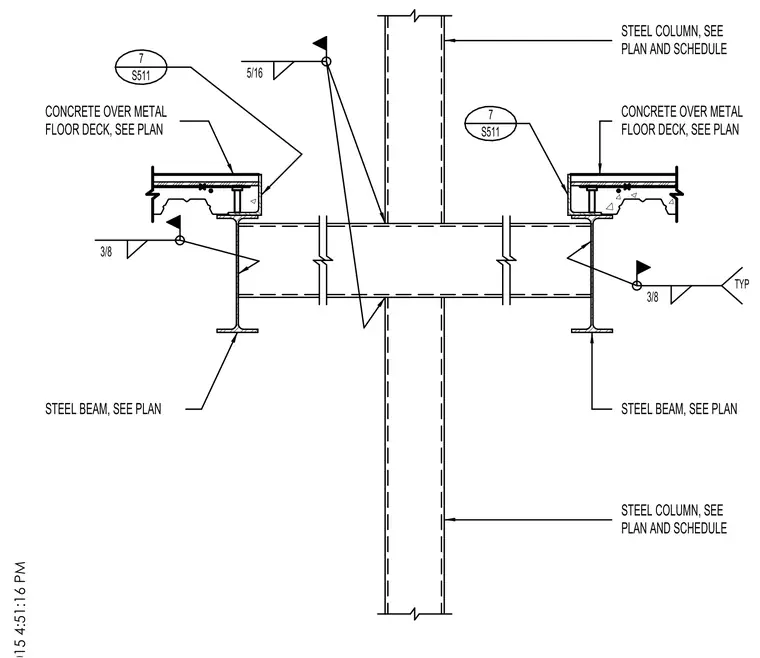

Steel beams frame into a continuous steel column with welded connections, supporting a concrete over metal floor deck sized per plan. The framing employs a five-sixteenths-inch fillet weld at the column connection and three-eighths-inch typical fillet welds on the beam web and flange connections. Concrete fill is placed over the metal floor deck on either side of the column. All structural steel members and deck conditions are sized per plan and schedule.
7 S511 7 S511 STEEL BEAM, SEE PLAN STEEL BEAM, SEE PLAN STEEL COLUMN, SEE PLAN AND SCHEDULE STEEL COLUMN, SEE PLAN AND SCHEDULE 3/8 TYP 5/16 CONCRETE OVER METAL FLOOR DECK, SEE PLAN 3/8 CONCRETE OVER METAL FLOOR DECK, SEE PLAN
