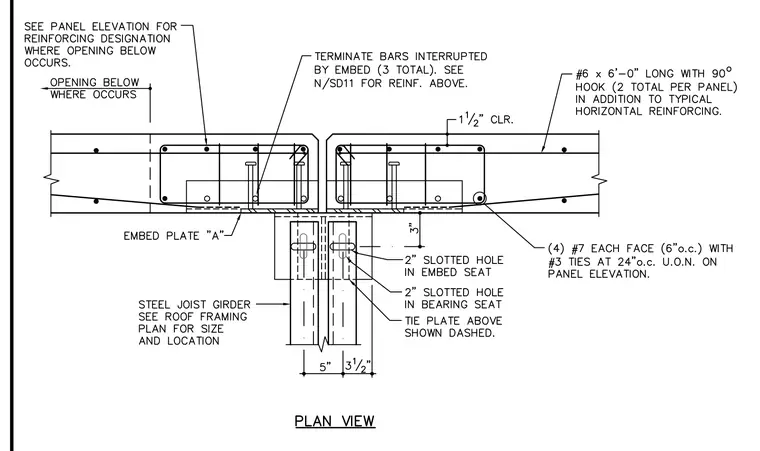

Precast concrete wall panels bear on a steel joist girder via embed plates and slotted holes, maintaining a 3 1/2-inch clearance at the joint. The connection incorporates a tie plate above, embed plate A, and two 2-inch slotted holes in both the embed seat and bearing seat. Additional reinforcing includes number 6 bars at 6 feet 0 inches long with 90-degree hooks, and number 7 bars at each face spaced at 6 inches on center with number 3 ties at 24 inches on center. Terminate bars are interrupted by three total embeds, and specific reinforcing designations apply where openings below occur.
