Structural · S-HPEZA

Roof Joist and Deck Bearing at Support Beam

About this detail

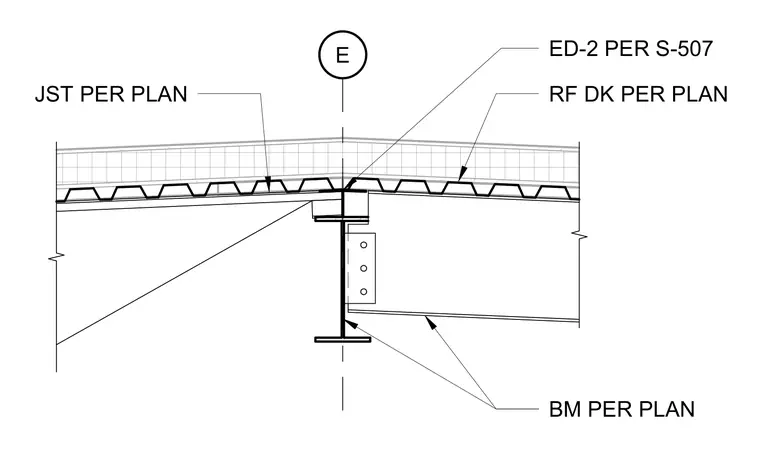

Roof joists bear upon a structural steel beam sized per plan, supporting a roof deck sized per plan. An edge detail ED-2 per sheet S-507 occurs at the roof deck termination over the support beam.

E RF DK PER PLAN BM PER PLAN JST PER PLAN ED-2 PER S-507

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
