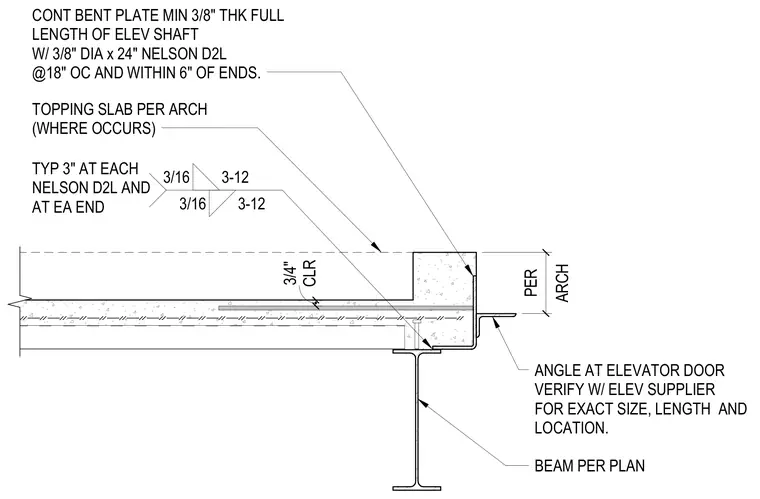

A continuous bent plate with a minimum thickness of three-eighths of an inch runs the full length of the elevator shaft, anchored by three-eighths-inch diameter by twenty-four-inch Nelson studs spaced at eighteen inches on center and within six inches of ends. A floor beam per plan supports the assembly, while a topping slab occurs per architectural drawings with three-quarters of an inch clearance. An angle at the elevator door requires verification with the elevator supplier for exact size, length, and location. Three-sixteenths-inch fillet welds with three-inch length and twelve-inch spacing secure the steel connection.
BEAM PER PLAN 3/16 3-12 3/16 3-12 CLR 3/4" TOPPING SLAB PER ARCH (WHERE OCCURS) ARCH PER ANGLE AT ELEVATOR DOOR VERIFY W/ ELEV SUPPLIER FOR EXACT SIZE, LENGTH AND LOCATION. CONT BENT PLATE MIN 3/8" THK FULL LENGTH OF ELEV SHAFT W/ 3/8" DIA x 24" NELSON D2L @18" OC AND WITHIN 6" OF ENDS. TYP 3" AT EACH NELSON D2L AND AT EA END
