A 4x4x1/4 post connects to horizontal structural members using a 1/2-inch base plate secured with four 3/4-inch bolts. A diagonal brace ties into the assembly via 4x4x3/8 weld tabs attached with quarter-inch fillet welds. Web stiffeners are provided at the beam web to reinforce the connection against concentrated loads. Additional clip angles with bolted connections tie the framing elements together.

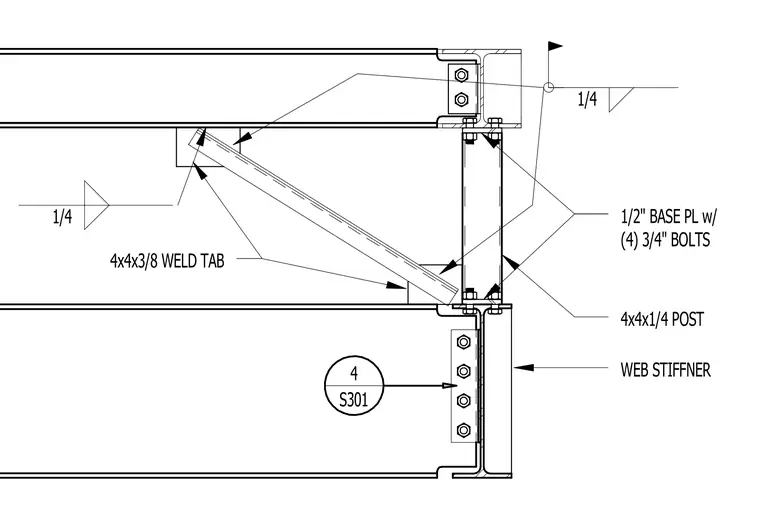

WEB STIFFNER 4x4x3/8 WELD TAB 1/4 1/4 4x4x1/4 POST 1/2" BASE PL w/ (4) 3/4" BOLTS 4 S301
