Structural · S-HNW72

Provide Transverse Angle With 2

Materials

Reinforced Concrete Steel Timber / Wood

Elements

Beams Floors / Slabs Decks Connections / Plates Reinforcing

Connections

Welded Connection Bolted Connection Shear Stud / Composite Deck Attachment Embed Plate

About this detail

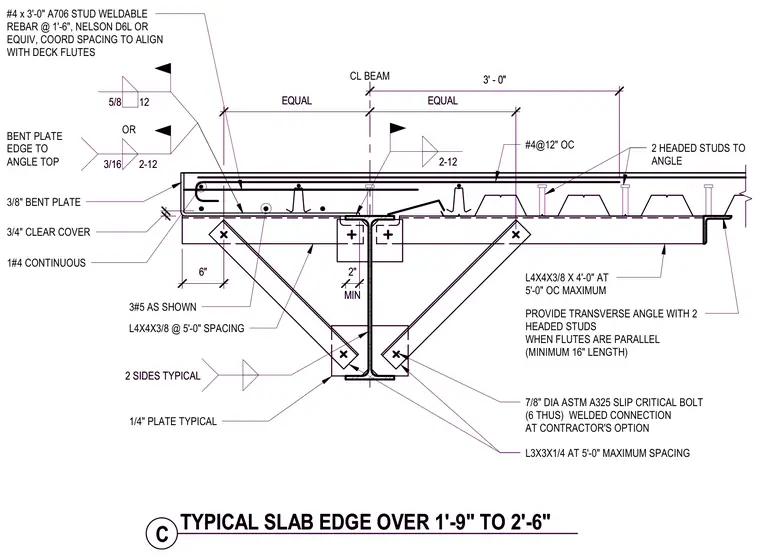

A three-eighths-inch bent plate forms the slab edge with a three-quarter-inch clear cover over the concrete. The assembly includes continuous number four rebar, three number five bars as shown, and number four bars at twelve inches on center on two sides typical. Nelson D6L or equivalent five-eighths-inch by three-foot A706 weldable rebar studs are spaced at one foot six inches and coordinated to align with the deck flutes. A transverse angle with two headed studs is provided when flutes are parallel at a minimum length of sixteen inches. Structural angles including L4x4x3/8 at five-foot spacing and L3x3x1/4 at five-foot maximum spacing provide support, fastened with six seven-eighths-inch diameter ASTM A325 slip-critical bolts where specified or using a welded connection at the contractor's option.
