An angle brace connects to a structural steel plate anchored against the underside of a concrete slab on metal deck. The assembly features a 1/4-inch by 15-inch by 1 foot 3-inch plate secured by four 3/4-inch diameter expansion anchors with a 3 1/4-inch embedment spaced at 12 inches on center in the deck flute. An L6x4x3/8 by 1-foot long angle member welds to the plate with 3/16-inch fillet welds. Waterproofing must be maintained between the anchors, and slab orientation may vary.

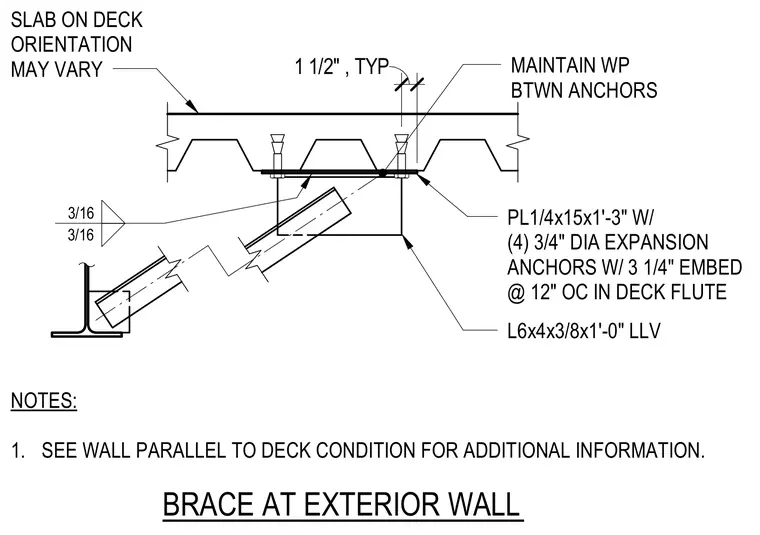

BRACE AT EXTERIOR WALL MAINTAIN WP BTWN ANCHORS NOTES: 1. SEE WALL PARALLEL TO DECK CONDITION FOR ADDITIONAL INFORMATION. 1 1/2" , TYP PL1/4x15x1'-3" W/ (4) 3/4" DIA EXPANSION ANCHORS W/ 3 1/4" EMBED @ 12" OC IN DECK FLUTE L6x4x3/8x1'-0" LLV SLAB ON DECK ORIENTATION MAY VARY 3/16 3/16
