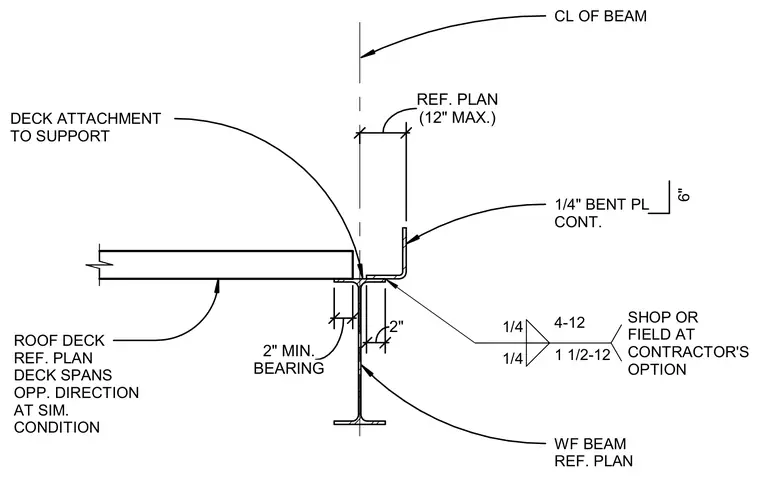

A continuous one-quarter-inch bent plate sits atop the wide flange steel beam flange and is welded with one-quarter-inch welds. The roof deck bears on the steel beam with a two-inch minimum bearing length. Deck attachment to support is detailed with specific spacing dimensions as referenced on the plan. The deck spans in the opposite direction at similar conditions with a maximum twelve-inch reference dimension from the beam centerline. All welding can be completed in the shop or field at the contractor's option.
CL OF BEAM WF BEAM REF. PLAN ROOF DECK REF. PLAN DECK SPANS OPP. DIRECTION AT SIM. CONDITION (12" MAX.) REF. PLAN 1/4" BENT PL CONT. 6" 1/4 1/4 SHOP OR FIELD AT CONTRACTOR'S OPTION 2" DECK ATTACHMENT TO SUPPORT 1 1/2-12 4-12 BEARING 2" MIN.
