Structural · S-HNFNV

Steel Shear Tab Connections and Bolt Schedule

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Shear Tab / Single Plate HSS Connection Beam-to-Beam Welded Connection Bolted Connection

About this detail

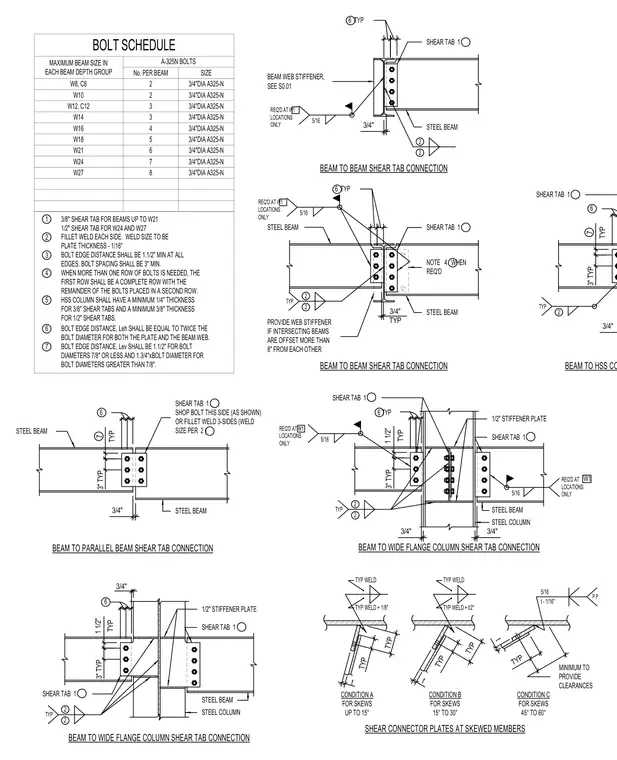

Standard structural steel shear tab connections encompass beam-to-beam, beam-to-wide-flange column, beam-to-HSS column, and parallel beam conditions. Connections utilize single shear plates shop-welded to supports and bolted to supported steel beam webs with three-quarter-inch diameter A325-N bolts, with bolt quantities varying from two to eight depending on beam size and depth group per the accompanying bolt schedule. Edge distances are specified as one-and-one-half inches for bolt diameters seven-eighths inch or less, and one-and-three-quarters times the bolt diameter for larger bolts, with three-inch minimum bolt spacing. Five-sixteenth-inch fillet welds are required at designated locations, with weld sizes equal to plate thickness minus one-sixteenth inch for plate-to-beam connections. Web stiffeners are provided when intersecting beams are offset more than eight inches from each other or where required by column thickness limits. Skewed member connections detail conditions for angles up to sixty degrees with specific clearance and weld requirements.

BOLT SCHEDULE 5/16 REQ'D AT W1 LOCATIONS ONLY BOLT DIAMETER FOR BOTH THE PLATE AND THE BEAM WEB. BOLT EDGE DISTANCE, Lev SHALL BE 1.1/2" FOR BOLT DIAMETERS 7/8" OR LESS AND 1.3/4"xBOLT DIAMETER FOR BOLT DIAMETERS GREATER THAN 7/8". 5/16 REQ'D AT W1 LOCATIONS ONLY NOTE 4 WHEN REQ'D PROVIDE WEB STIFFENER IF INTERSECTING BEAMS ARE OFFSET MORE THAN 8" FROM EACH OTHER 5/16 REQ'D AT W1 LOCATIONS ONLY W1 6 TYP 1 1/2" 3" TYP 6 TYP TYP 1 1/2" 3" TYP TYP 3" TYP TYP 3" TYP TYP t MINIMUM TO PROVIDE CLEARANCES TYP TYP t TYP TYP t 7 6 7 6 3/4" 3/4" 3/4" 3/4" 3/4" TYP 3/4" 3/4" 1/2" STIFFENER PLATE STEEL COLUMN STEEL BEAM SHEAR TAB 1 SHEAR TAB 1 2 2 TYP BEAM TO WIDE FLANGE COLUMN SHEAR TAB CONNECTION STEEL COLUMN STEEL BEAM SHEAR TAB 1 1/2" STIFFENER PLATE SHEAR TAB 1 2 2 TYP BEAM TO WIDE FLANGE COLUMN SHEAR TAB CONNECTION 5/16 REQ'D AT LOCATIONS ONLY HSS COLUMN SHALL HAVE A MINIMUM 1/4" THICKNESS FOR 3/8" SHEAR TABS AND A MINIMUM 3/8" THICKNESS FOR 1/2" SHEAR TABS. 5 SIZE 3/4"DIA A325-N 2 No. PER BEAM W8, C8 MAXIMUM BEAM SIZE IN EACH BEAM DEPTH GROUP A-325N BOLTS BEAM TO BEAM SHEAR TAB CONNECTION STEEL BEAM SHEAR TAB 1 STEEL BEAM SHEAR TAB 1 . STEEL BEAM 2 2 TYP 3 3 4 5 7 8 6 W12, C12 W14 W16 W18 W24 W27 W21 2 3 4 1 1/2" SHEAR TAB FOR W24 AND W27 FILLET WELD EACH SIDE. WELD SIZE TO BE PLATE THICKNESS - 1/16" REMAINDER OF THE BOLTS PLACED IN A SECOND ROW. FIRST ROW SHALL BE A COMPLETE ROW WITH THE WHEN MORE THAN ONE ROW OF BOLTS IS NEEDED, THE EDGES. BOLT SPACING SHALL BE 3" MIN. BOLT EDGE DISTANCE SHALL BE 1.1/2" MIN AT ALL STEEL BEAM 2 BEAM TO HSS COLUMN SHEAR TAB CONNECTION TYP SHEAR TAB 1 BEAM TO PARALLEL BEAM SHEAR TAB CONNECTION W10 2 45° TO 60° FOR SKEWS CONDITION C 15° TO 30° FOR SKEWS CONDITION B UP TO 15° FOR SKEWS CONDITION A SHEAR CONNECTOR PLATES AT SKEWED MEMBERS t - 1/16" TYP WELD TYP WELD + 1/8" TYP WELD TYP WELD + t/2" 5/16 SHOP BOLT THIS SIDE (AS SHOWN) OR FILLET WELD 3-SIDES (WELD SIZE PER 2 ) P.P. BEAM TO BEAM SHEAR TAB CONNECTION STEEL BEAM SHEAR TAB 1 2 2 BEAM WEB STIFFENER, BOLT EDGE DISTANCE, Leh SHALL BE EQUAL TO TWICE THE 6 7 6 TYP 6 TYP 3/8" SHEAR TAB FOR BEAMS UP TO W21 SEE S0.01 3/4"DIA A325-N 3/4"DIA A325-N 3/4"DIA A325-N 3/4"DIA A325-N 3/4"DIA A325-N 3/4"DIA A325-N 3/4"DIA A325-N 3/4"DIA A325-N
