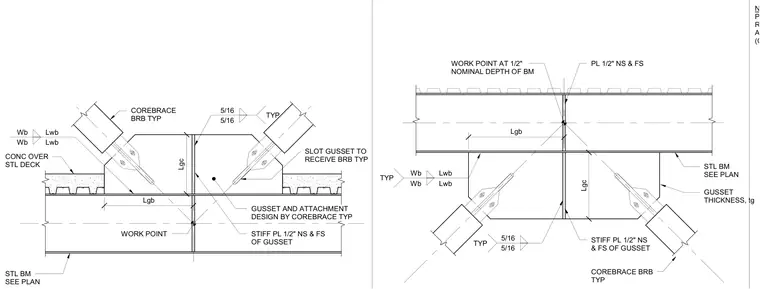

A buckling restrained brace connects to a steel beam supporting a concrete slab over metal deck using a gusset plate with five-sixteenth-inch welds. One-half-inch stiffener plates are provided on the near side and far side of the gusset. The gusset is slotted to receive the brace, and blockout material is placed in hatched regions while concrete directly contacts the gusset and connection region. A half-inch nominal depth work point is established at the beam intersection.
NOTE: PROVIDE BLOCKOUT MATERIAL IN HATCHED REGIONS AS SHOWN, BUT DO NOT PLACE MATERIAL AROUND GUSSET OR CONNECTION REGION. (CONCRETE SHOULD DIRECTLY CONTACT GUSSET) Wb Lwb Wb Lwb TYP GUSSET THICKNESS, tg 5/16 5/16 TYP STIFF PL 1/2" NS & FS OF GUSSET COREBRACE BRB TYP STL BM SEE PLAN WORK POINT AT 1/2" NOMINAL DEPTH OF BM Lgb Lgc PL 1/2" NS & FS WORK POINT COREBRACE BRB TYP 5/16 5/16 TYP GUSSET AND ATTACHMENT DESIGN BY COREBRACE TYP SLOT GUSSET TO RECEIVE BRB TYP CONC OVER STL DECK STL BM SEE PLAN STIFF PL 1/2" NS & FS OF GUSSET Wb Lwb Wb Lwb Lgb Lgc
