Structural · S-HNC5H

Slab on Metal Deck to Concrete Wall Angle Connection

Materials

Concrete Steel

Elements

Walls Floors / Slabs Decks Reinforcing

Connections

Rebar Splice / Development Deck Attachment

About this detail

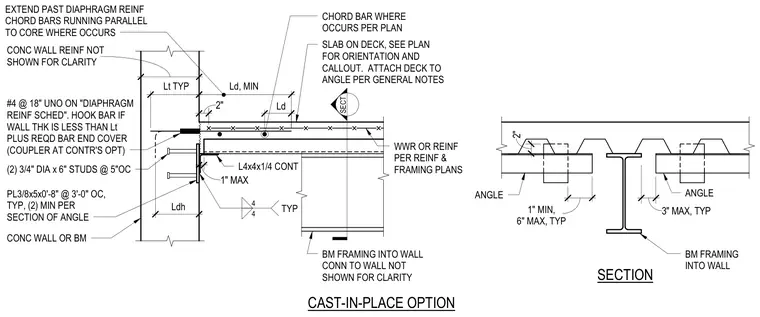

A slab on metal deck connection frames into a concrete wall or beam using a continuous structural steel angle. The assembly features a continuous L4x4x1/4 angle attached to the concrete wall via 3/8-inch by 5-inch by 8-inch plates spaced at 3 feet on center with a minimum of two per angle section, along with two 3/4-inch diameter by 6-inch studs at 5 inches on center. The metal deck supports a concrete slab with welded wire reinforcement or reinforcing bars, incorporating chord bars running parallel to the core as specified per plans. The concrete wall includes number 4 reinforcing bars at 18 inches on center, with hooked bar options and couplers provided when wall thickness is less than required development lengths.
