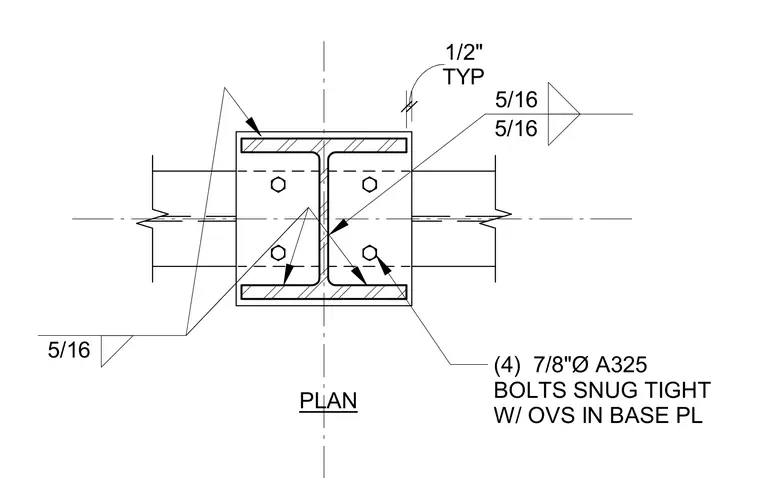

Four seven-eighths-inch diameter A325 anchor bolts installed snug tight with oversized holes in the base plate. Fillet welds sized at five-sixteenths-inch attach the structural steel column flanges and web to the base plate. A half-inch dimension is noted typically at the plate edge.
