Structural · S-HMTJC

Beam To Wf Column Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Welded Connection

About this detail

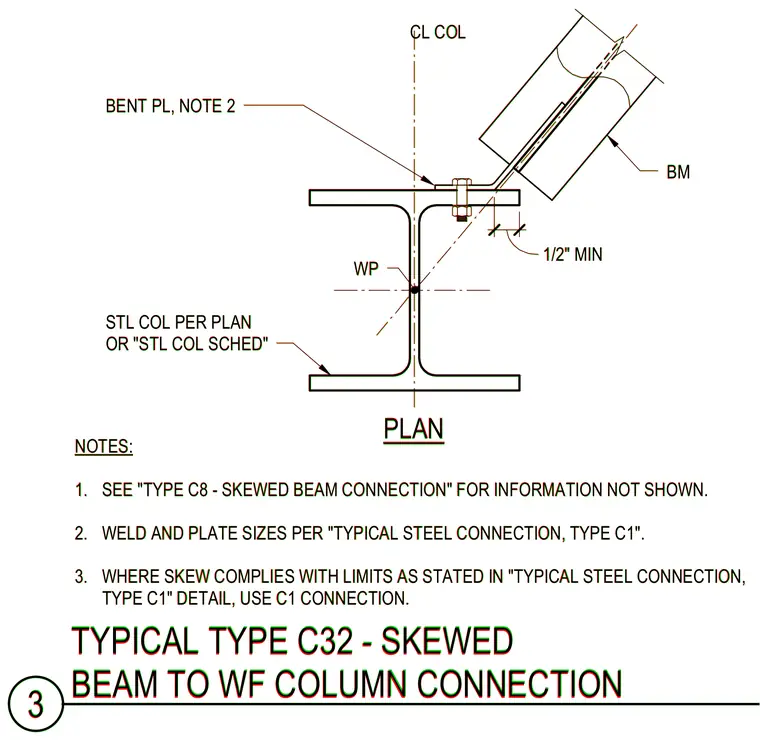

A skewed beam connects to a wide flange steel column using a bent plate. The wide flange column is sized per plan or the steel column schedule. A bent plate, sized per typical connection type C1, attaches the beam web to the column flange. A minimum one-half inch clearance is maintained between the beam end and the column face, with three typical bolts securing the connection through a working point intersection at the column center line.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
