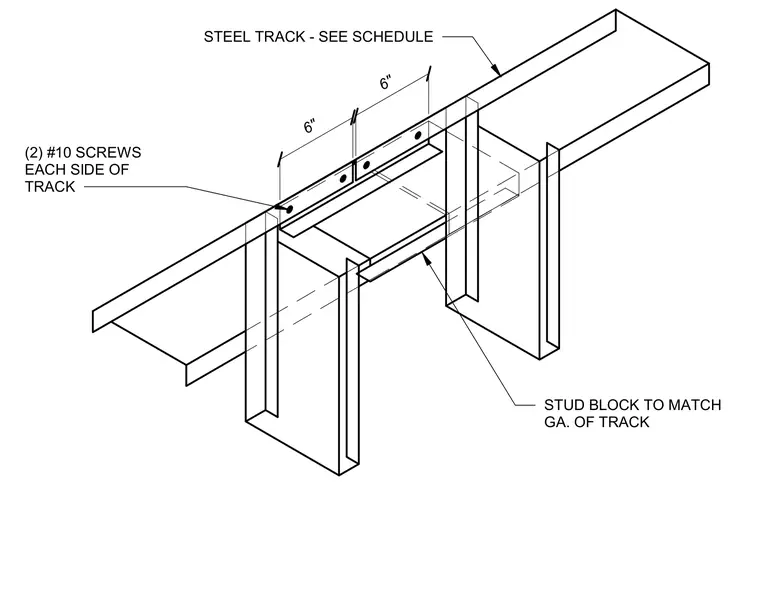

Cold-formed steel track members align with a matching gauge stud block secured between framing components. Two number ten self-drilling screws fasten each side of the track to the blocking. The steel track is sized per structural schedules.
6" 6" STUD BLOCK TO MATCH GA. OF TRACK (2) #10 SCREWS EACH SIDE OF TRACK STEEL TRACK - SEE SCHEDULE
