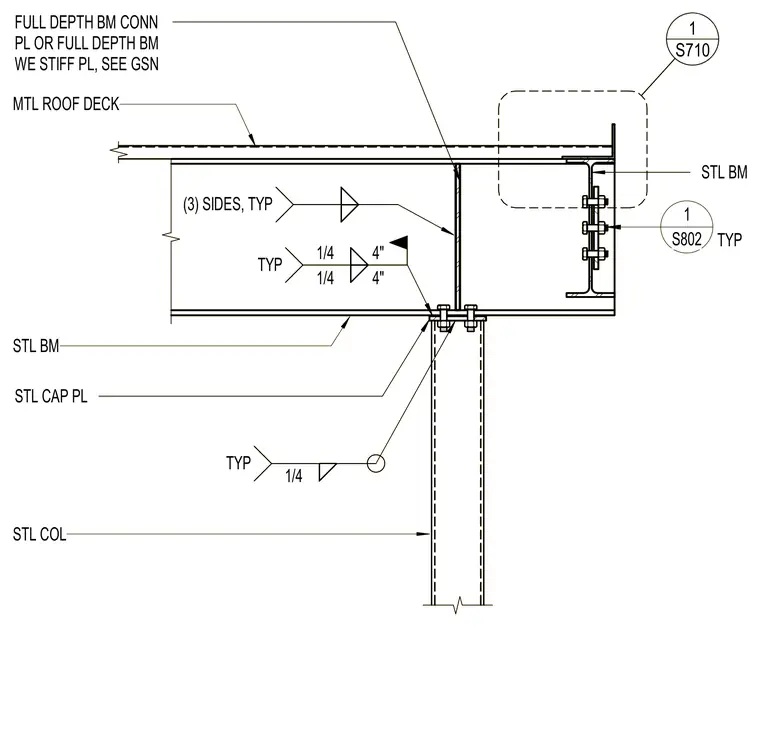

A structural steel beam frames into a steel column topped with a steel cap plate. A full depth beam connection plate or web stiffener plate is welded to the beam web with quarter-inch fillet welds applied to three sides typical. The beam flange bears on the steel cap plate, secured with a quarter-inch fillet weld. Metal roof deck spans continuously over the top flange of the steel beam.
FULL DEPTH BM CONN PL OR FULL DEPTH BM WE STIFF PL, SEE GSN STL BM STL CAP PL STL BM STL COL MTL ROOF DECK 1/4 TYP (3) SIDES, TYP 1/4 1/4 4" 4" TYP 1 S802 S710 1 TYP FULL DEPTH BM CONN PL OR FULL DEPTH BM WE STIFF PL, SEE GSN STL BM STL CAP PL STL BM STL COL MTL ROOF DECK 1/4 TYP (3) SIDES, TYP 1/4 1/4 4" 4" TYP 1 S802 S710 1 TYP
