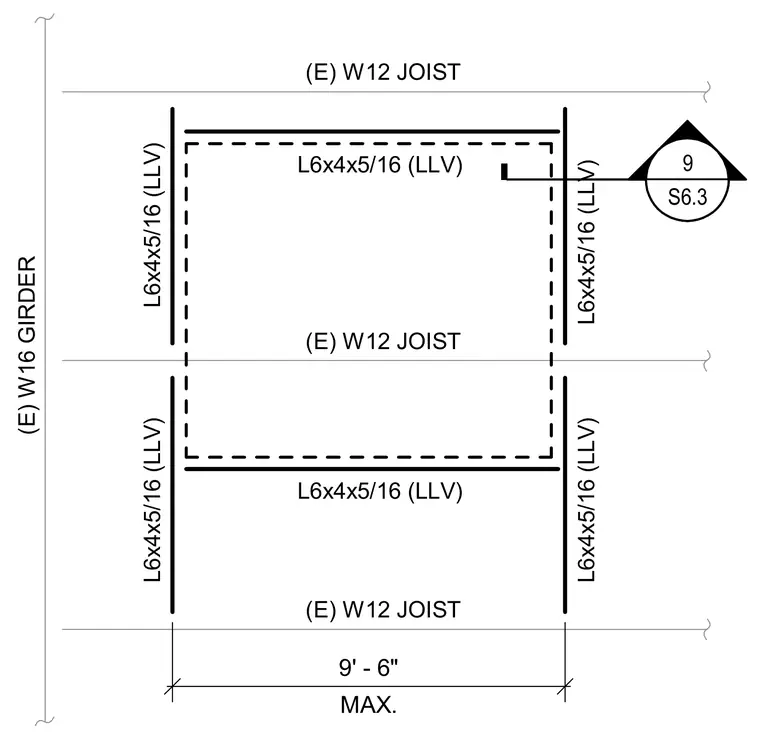

Existing W12 joists frame into an existing W16 girder with L6x4x5/16 angles oriented with long legs vertical. The maximum framing span measures nine feet six inches.
(E) W12 JOIST (E) W12 JOIST (E) W12 JOIST (E) W16 GIRDER L6x4x5/16 (LLV) L6x4x5/16 (LLV) L6x4x5/16 (LLV) L6x4x5/16 (LLV) L6x4x5/16 (LLV) L6x4x5/16 (LLV) 9 S6.3 _____ MAX. 9' - 6"
